Vrajmi

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04LH0477 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_FOCUSED_ATLAS_TWO_ROOT_DELIVERY_READBACK; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04LH0477
District	Junagadh
Taluka	Maliya Hatina
River	Vrajmi
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Zoned rolled-fill earthen dam
FRL (m)	94.0
HFL (m)	94.36
Top of dam (m)	97.86
Spillway crest (m)	90.95
Gross storage (Mm³)	10.035
Catchment (km²)	51.84
Bed level, adopted (m)	79.0
Head, documented (m)	18.86
Head in DEM before correction (m)	15.871
Head after DEM correction (m)	18.86
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.24	8	2,240.63	2,701.30	1,500.91	40.04	`../Vrajmi/S_EG_00__S02-FW-PIP/`	`a589f2025dcf4aa6`	2026-09-09T18:31
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Vrajmi/S_EG_00_REF__S01-FW-REF/`	`41c686479b87fddc`	2026-09-09T16:21
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	8	—	—	—	—	`../Vrajmi/S_EG_01__S03-DF-REF/`	`1e1e6c308255a500`	2026-09-09T16:29
`S_EG_02`	`S04-DF-OT`	retained	clean	0.11	8	4,987.43	7,421.13	1,500.91	77.23	`../Vrajmi/S_EG_02__S04-DF-OT/`	`66f1eda6c323c20b`	2026-09-09T18:40
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.08	8	2,624.37	—	1,365.58	43.90	`../Vrajmi/S_EG_05_SBL__S08-SO-L/`	`57a092783de03249`	2026-09-26T22:21
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.07	8	2,838.52	—	1,423.50	43.90	`../Vrajmi/S_EG_05_SBR__S09-SO-H/`	`08c753fb9f56849a`	2026-09-26T22:21
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.03	8	—	—	—	—	`../Vrajmi/S_EG_06__S06-DF-OPS/`	`ec2d1f73088bdd24`	2026-09-09T16:37

Assets

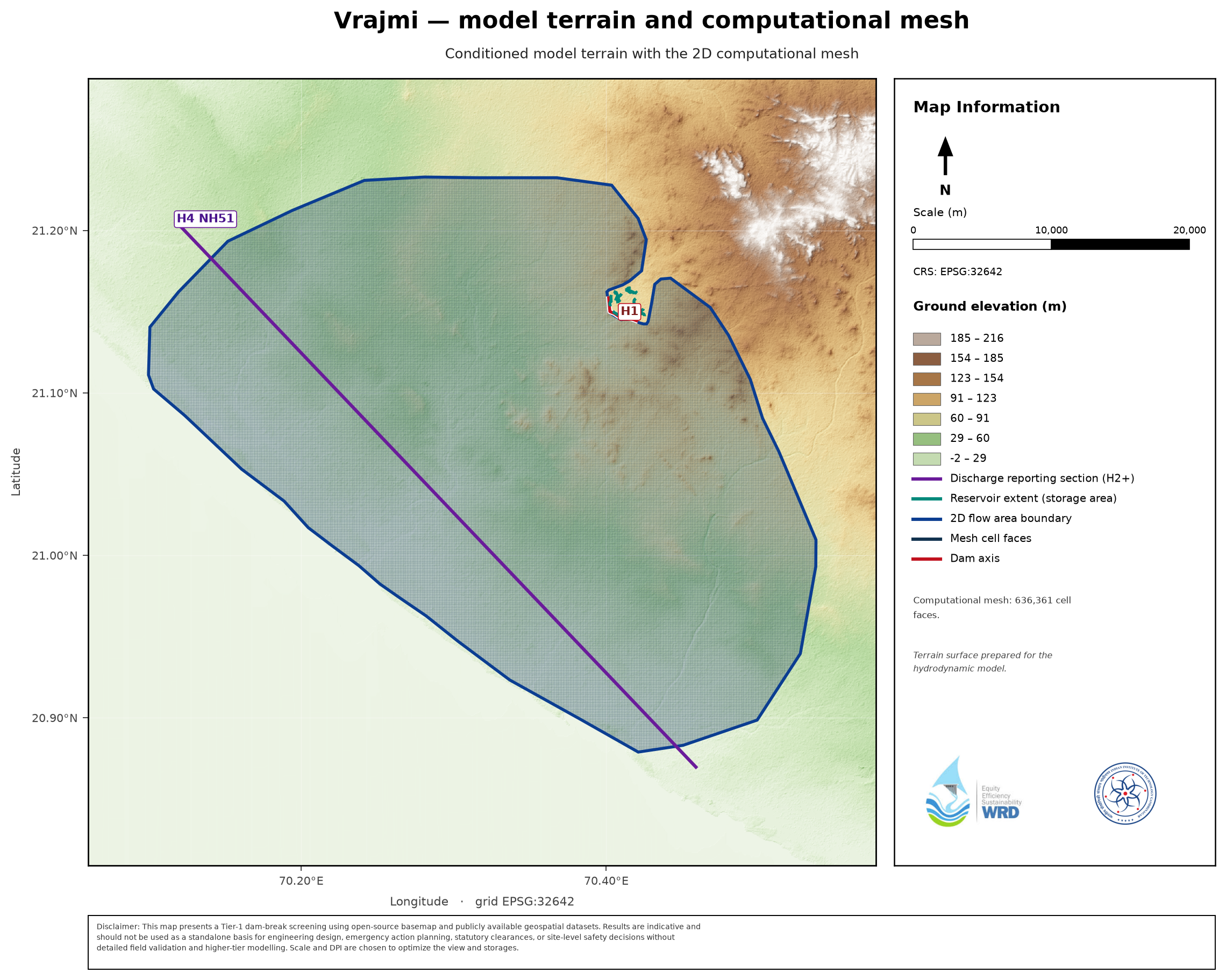

terrain plate (Fig 3.1): _maps/Vrajmi__dem.png

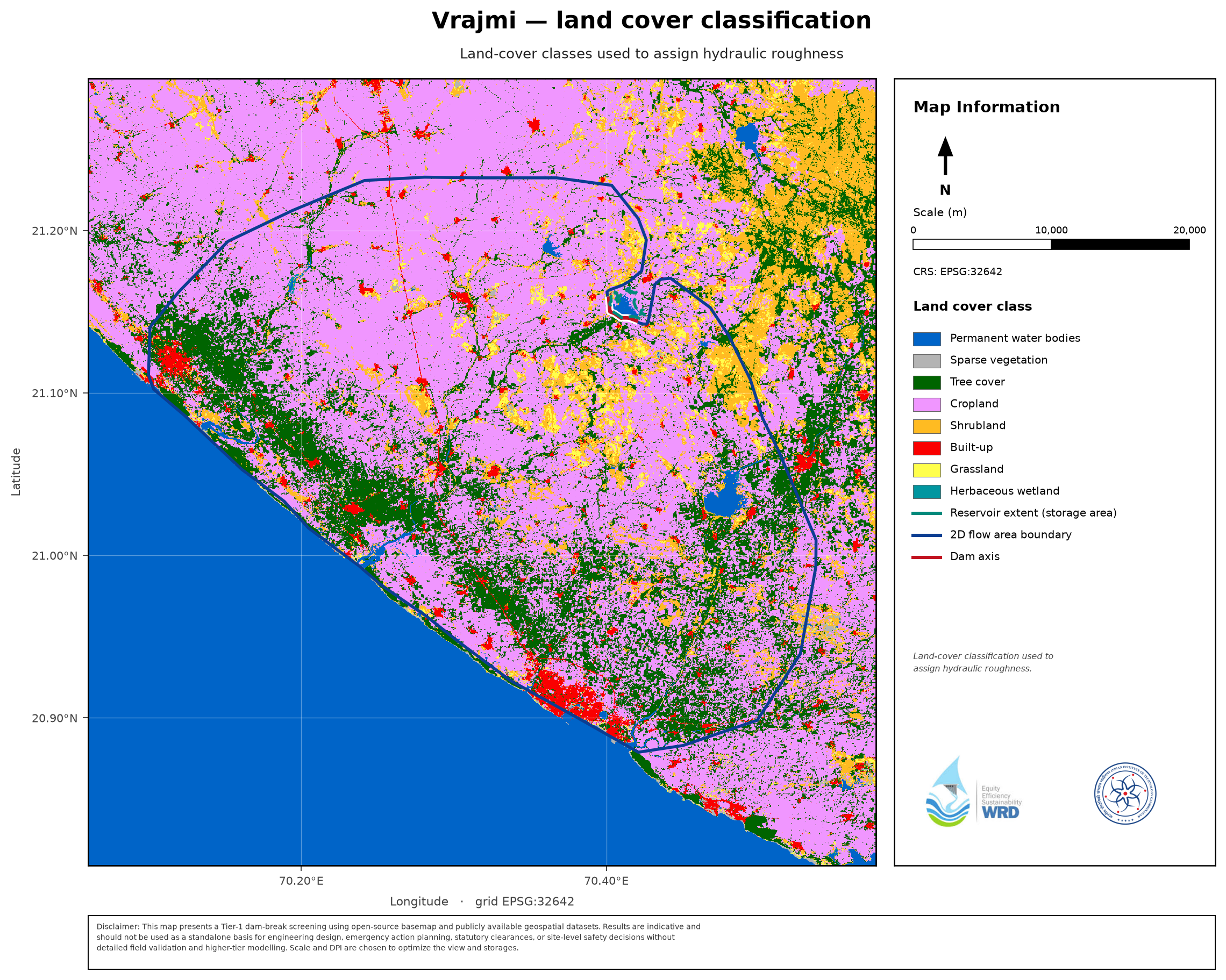

land-cover plate (Fig 3.2): _maps/Vrajmi__lulc.png
storage curve: _storage_curves/Vrajmi__storage_elevation.csv
inflow flood hydrograph: _infofiles/Vrajmi__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Vrajmi__inflow_baseflow_hydrograph.csv
breach location (supplier): _infofiles/Vrajmi__breach_location.png

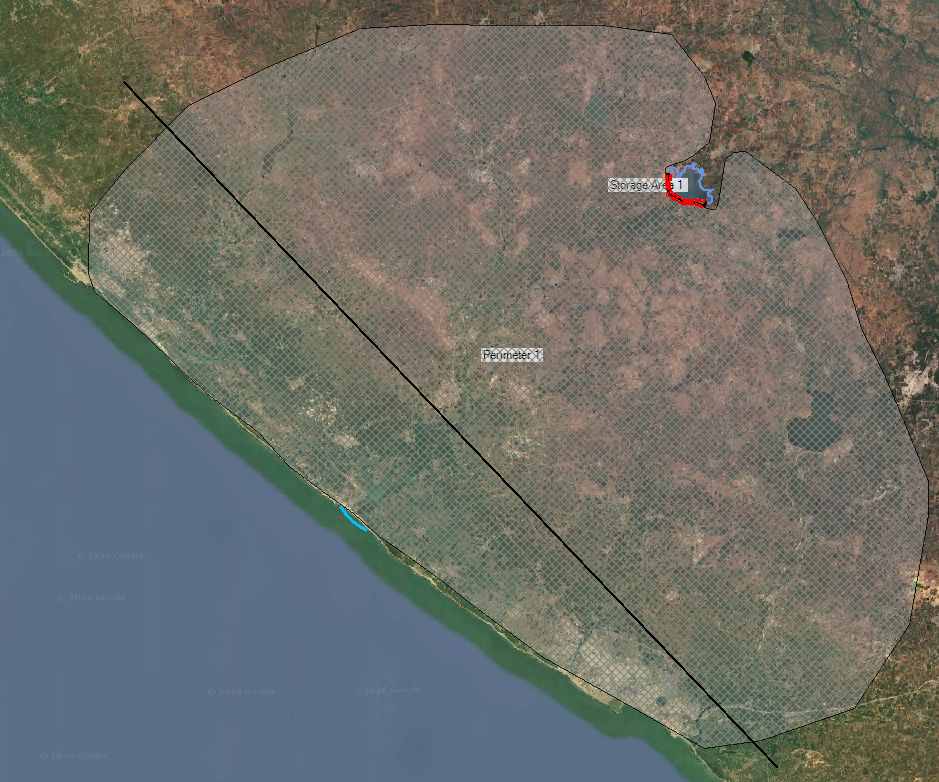

mesh: _infofiles/Vrajmi__mesh.png
infofile: _infofiles/Vrajmi__infofile.csv
DEM correction: _infofiles/Vrajmi__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Vrajmi
PAR / exposure: _par/Vrajmi
EAP figures (exposure curve + warning scatter, log y): _figures/Vrajmi
atlases: Vrajmi__S_EG_00_REF__S01-FW-REF, Vrajmi__S_EG_00__S02-FW-PIP, Vrajmi__S_EG_01__S03-DF-REF, Vrajmi__S_EG_02__S04-DF-OT, Vrajmi__S_EG_05_SBL__S08-SO-L, Vrajmi__S_EG_05_SBR__S09-SO-H, Vrajmi__S_EG_06__S06-DF-OPS
