Thebi

all dams · full registry · generated 2026-08-16 11:18 · PIC GJ208MH0765 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

Assets pending — not ready to print: PAR, fields, EAP figures, atlases (1 scn)

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.24	8	1,115.72	2,031.74	2,375.15	42.70	`../Thebi/S_EG_00__S02-FW-PIP/`	`58146f833036bb26`	2026-08-07T18:21
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Thebi/S_EG_00_REF__S01-FW-REF/`	`1dcb78f7d459e342`	2026-08-07T18:21
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	8	—	—	—	—	`../Thebi/S_EG_01__S03-DF-REF/`	`03ba6c46a0149446`	2026-08-07T18:21
`S_EG_02`	`S04-DF-OT`	retained	clean	0.05	8	3,896.99	6,420.56	2,375.15	88.14	`../Thebi/S_EG_02__S04-DF-OT/`	`69650c7dba93e77c`	2026-08-07T18:21
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.52	8	4,908.82	—	2,056.54	92.67	`../Thebi/S_EG_05_SBL__S08-SO-L/`	`8fc4ff7232be3510`	2026-08-07T18:21
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.41	8	4,964.40	—	2,102.88	92.67	`../Thebi/S_EG_05_SBR__S09-SO-H/`	`adbeb52876d5b07b`	2026-08-07T18:21
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.04	8	—	—	—	—	`../Thebi/S_EG_06__S06-DF-OPS/`	`d5fc3c5b0e707d84`	2026-08-07T18:21

Assets

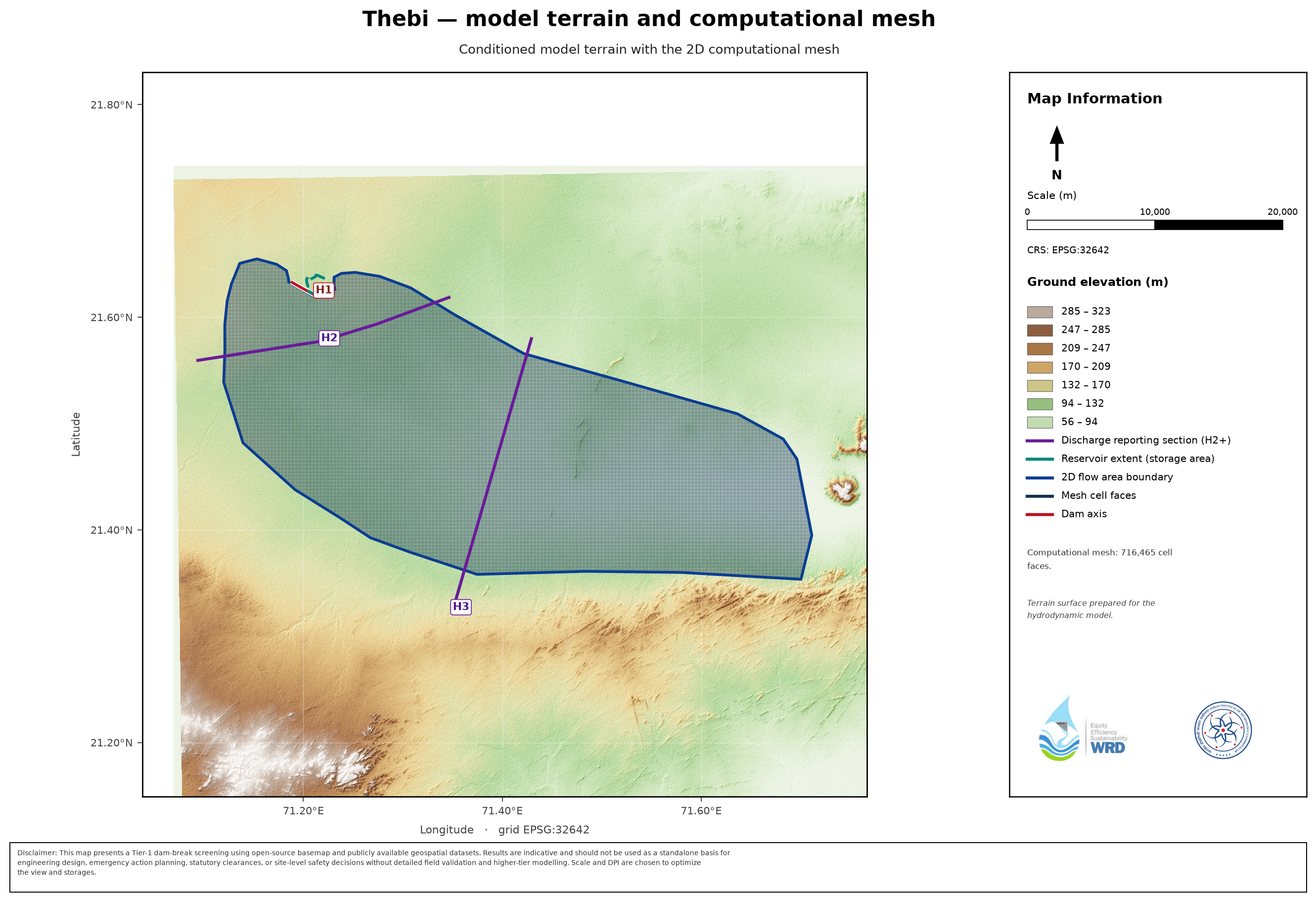

terrain plate (Fig 3.1): _maps/Thebi__dem.png

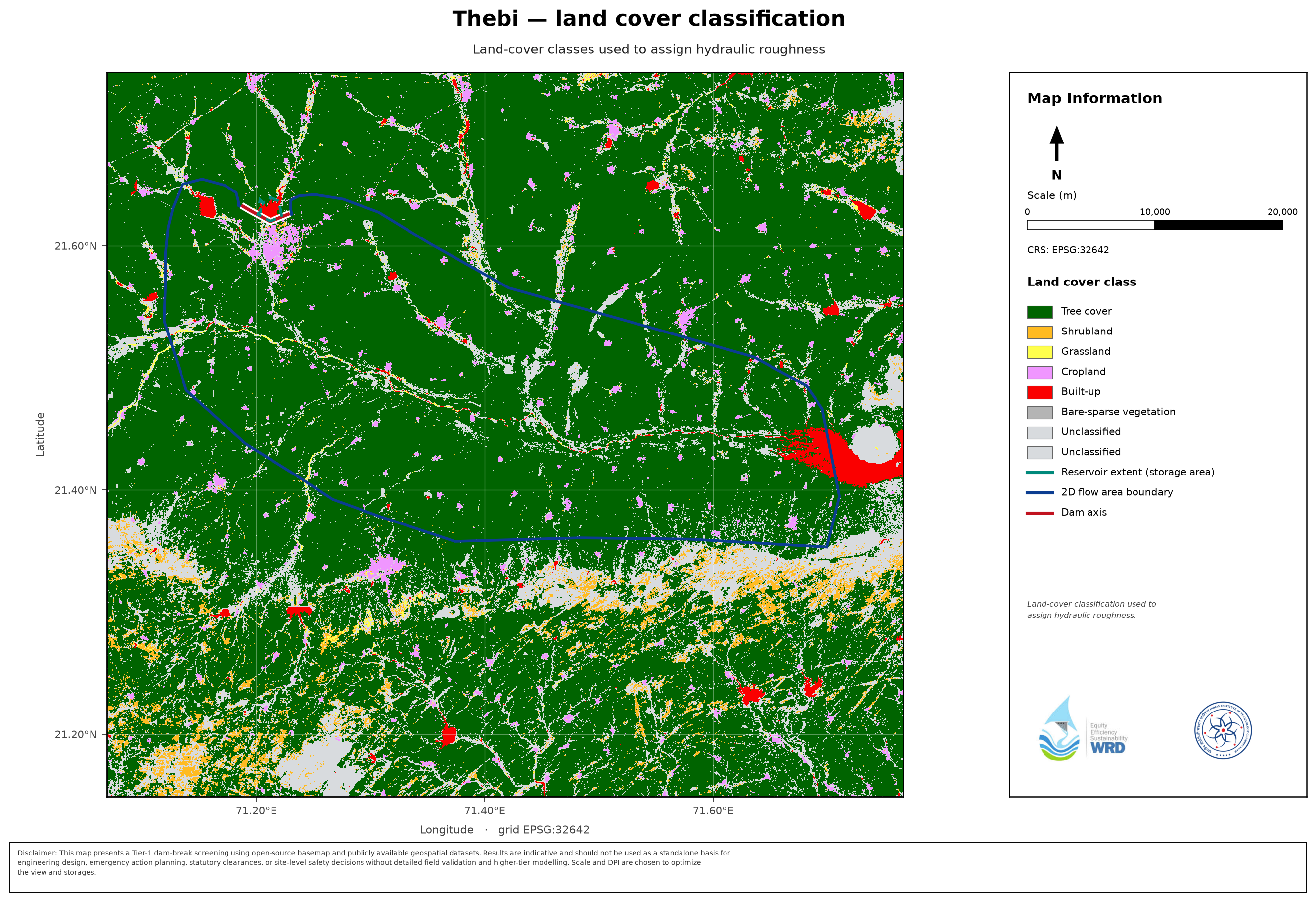

land-cover plate (Fig 3.2): _maps/Thebi__lulc.png
storage curve: _storage_curves/Thebi__storage_elevation.csv
inflow flood hydrograph: _infofiles/Thebi__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Thebi__inflow_baseflow_hydrograph.csv

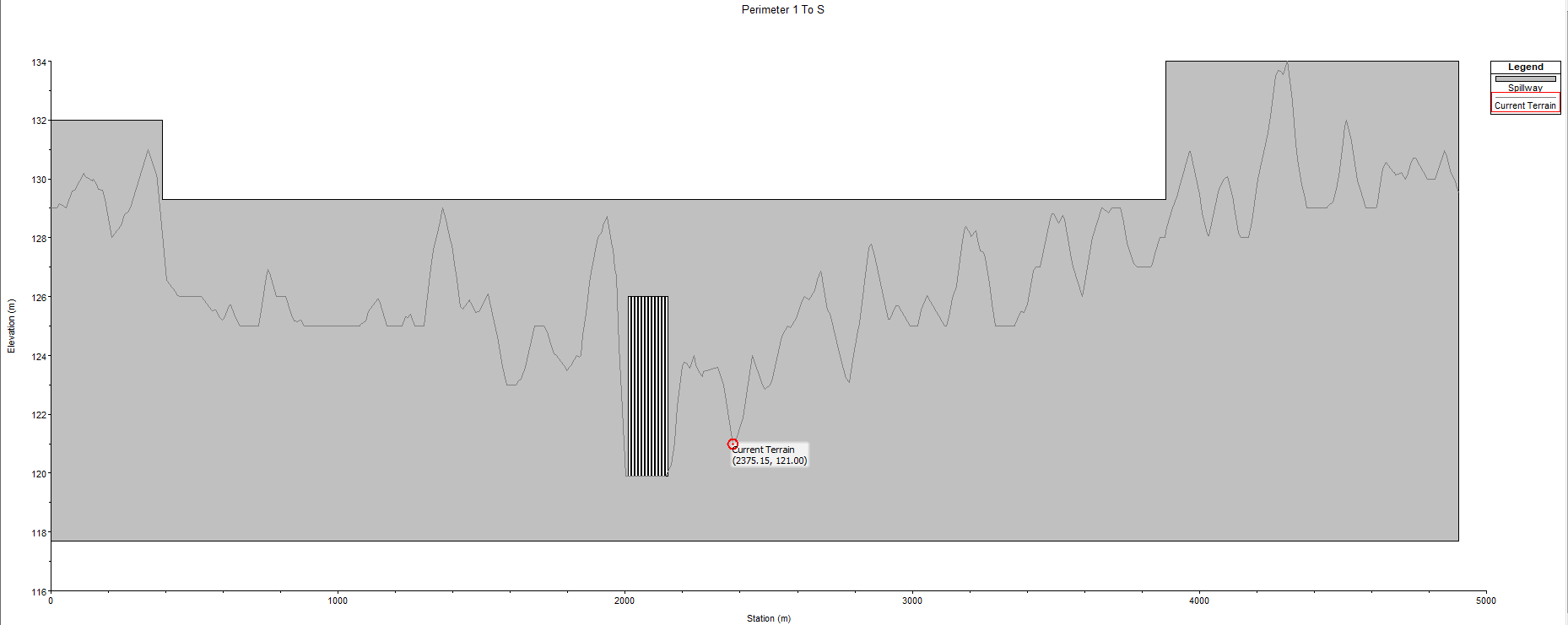

breach location (supplier): _infofiles/Thebi__breach_location.png

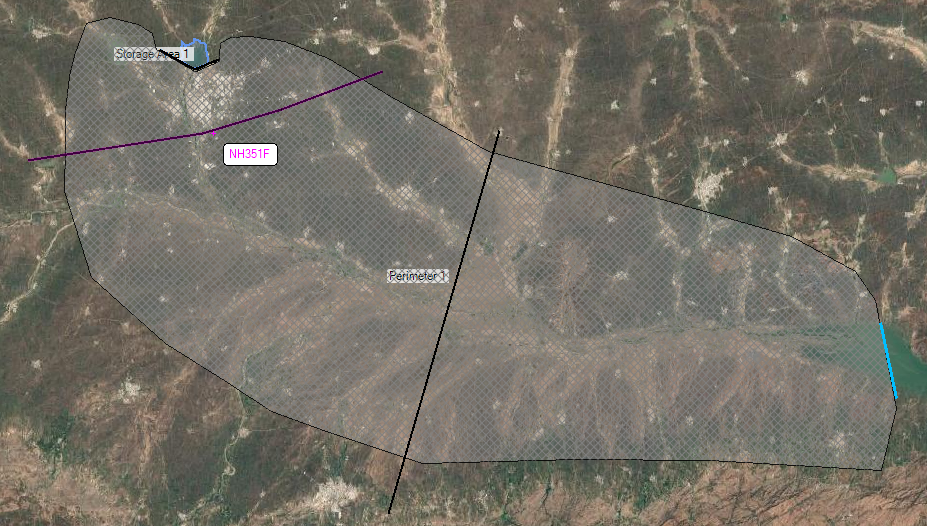

mesh: _infofiles/Thebi__mesh.png
infofile: _infofiles/Thebi__infofile.csv
DEM correction: _infofiles/Thebi__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Thebi
PAR / exposure: —
EAP figures (exposure curve + warning scatter, log y): —
atlases: Thebi__S_EG_00__S02-FW-PIP, Thebi__S_EG_01__S03-DF-REF, Thebi__S_EG_02__S04-DF-OT, Thebi__S_EG_05_SBL__S08-SO-L, Thebi__S_EG_05_SBR__S09-SO-H, Thebi__S_EG_06__S06-DF-OPS
