Rangmati

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04MH0431 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

report: current — V2.1 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04MH0431
District	Jamnagar
Taluka	Jamnagar
River	Rangmati
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Rolled filled zone type
FRL (m)	43.2
HFL (m)	43.2
Top of dam (m)	46.0
Spillway crest (m)	37.1
Gross storage (Mm³)	3.3561
Catchment (km²)	70.0
Bed level, adopted (m)	35.8
Head, documented (m)	10.2
Head in DEM before correction (m)	3.863
Head after DEM correction (m)	10.2
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

Assets pending — not ready to print: hydrograph gate FAIL (S02-FW-PIP)

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.29	9	707.31	993.49	1,540.00	28.32	`../Rangmati/S_EG_00__S02-FW-PIP/`	`dc6684ac54efbdb1`	2026-10-09T20:34
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	9	—	—	—	—	`../Rangmati/S_EG_00_REF__S01-FW-REF/`	`5f1d187bfb31b646`	2026-10-09T20:30
`S_EG_01`	`S03-DF-REF`	retained	clean	0.04	9	—	—	—	—	`../Rangmati/S_EG_01__S03-DF-REF/`	`8484c8e22be9f649`	2026-10-09T20:32
`S_EG_02`	`S04-DF-OT`	retained	clean	0.08	9	1,680.63	2,926.06	1,540.00	54.71	`../Rangmati/S_EG_02__S04-DF-OT/`	`9911b090d38707e5`	2026-10-09T20:35
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.05	9	1,116.67	—	1,720.45	43.65	`../Rangmati/S_EG_05_SBL__S08-SO-L/`	`547d61f7cceb97fd`	2026-10-09T21:34
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.05	9	1,116.98	—	1,731.95	43.65	`../Rangmati/S_EG_05_SBR__S09-SO-H/`	`78e8b574964c74d0`	2026-10-09T21:34
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.05	9	—	—	—	—	`../Rangmati/S_EG_06__S06-DF-OPS/`	`f0ef83dbdf96512a`	2026-10-09T20:32

Assets

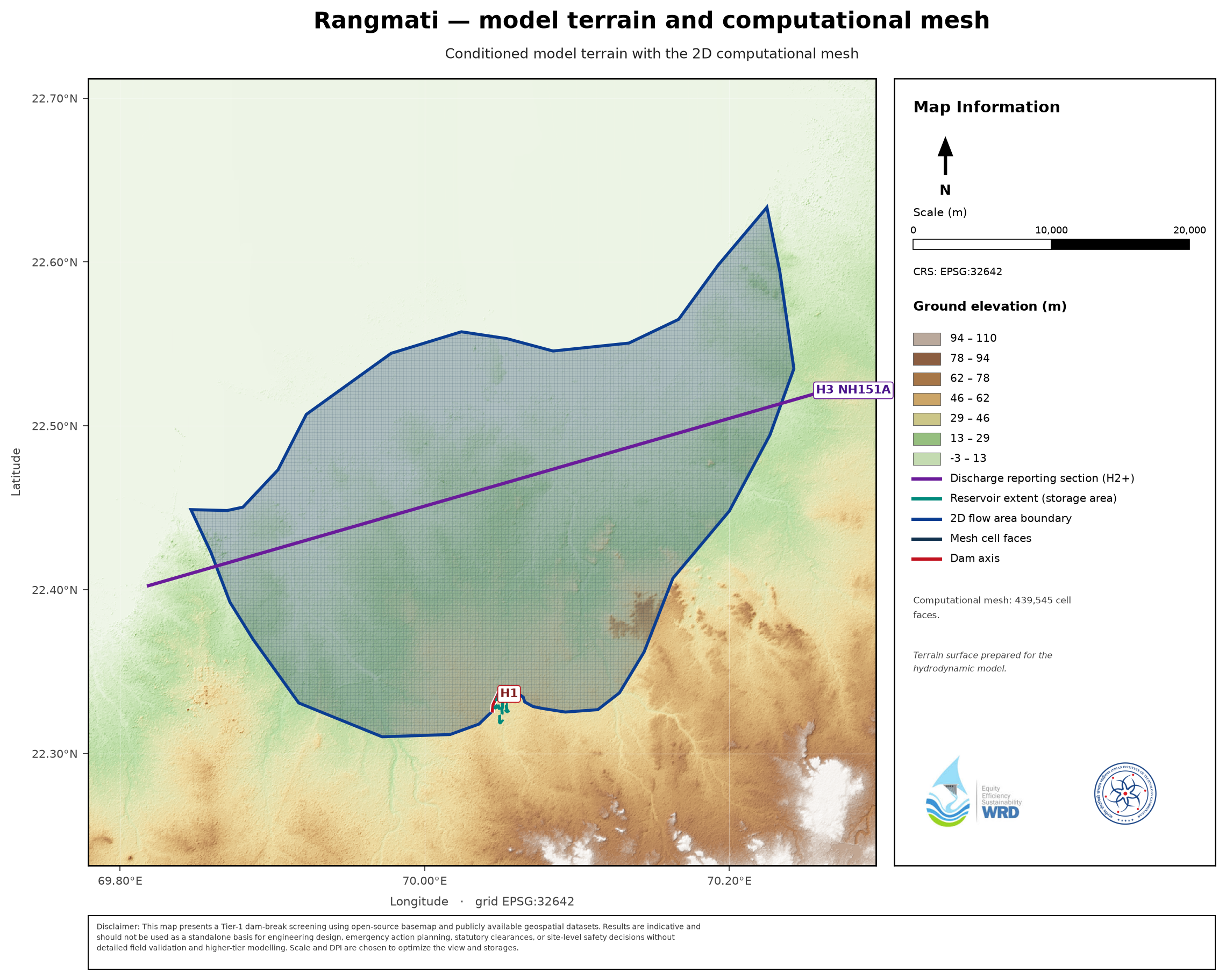

terrain plate (Fig 3.1): _maps/Rangmati__dem.png

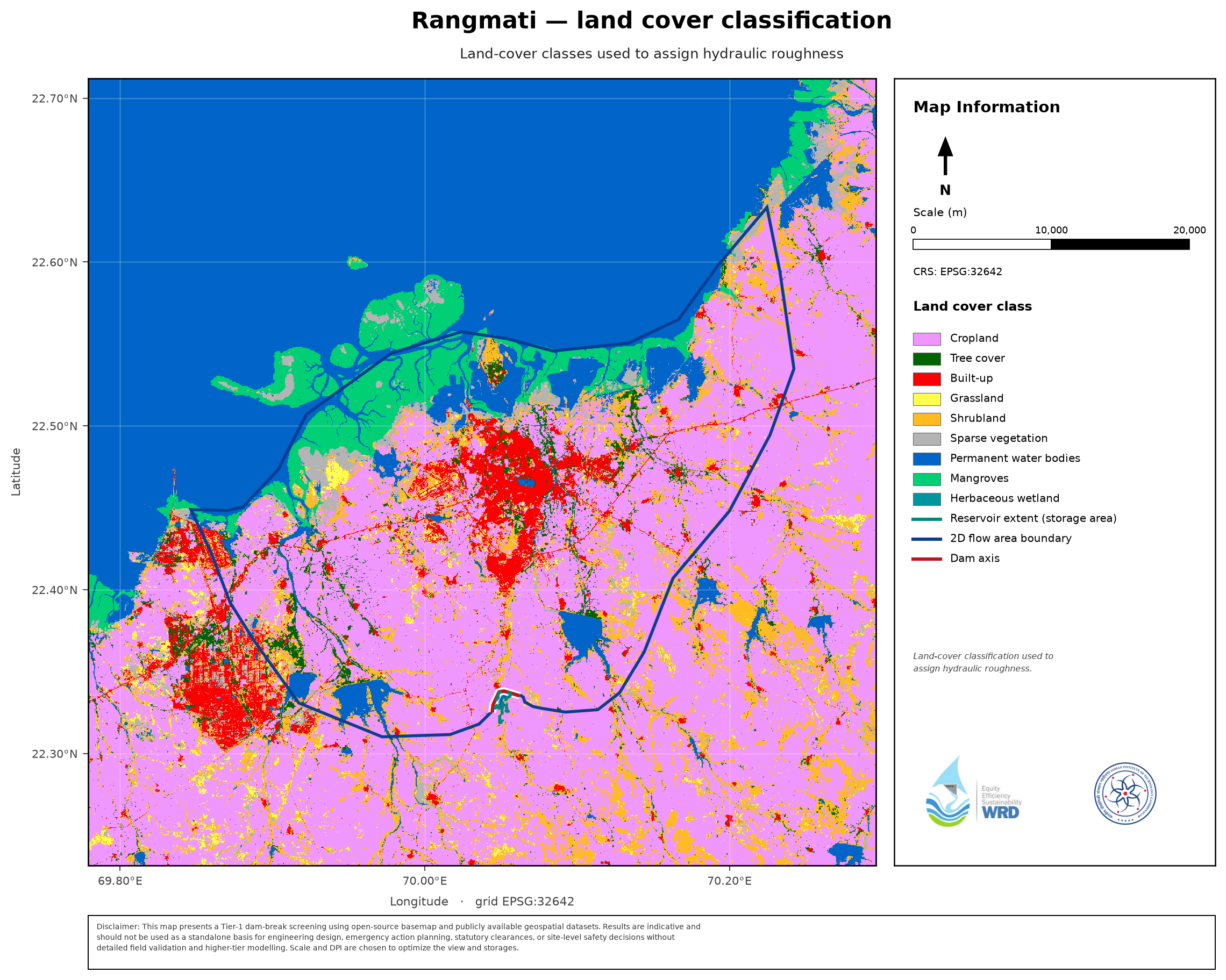

land-cover plate (Fig 3.2): _maps/Rangmati__lulc.png
storage curve: _storage_curves/Rangmati__storage_elevation.csv
inflow flood hydrograph: _infofiles/Rangmati__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Rangmati__inflow_baseflow_hydrograph.csv

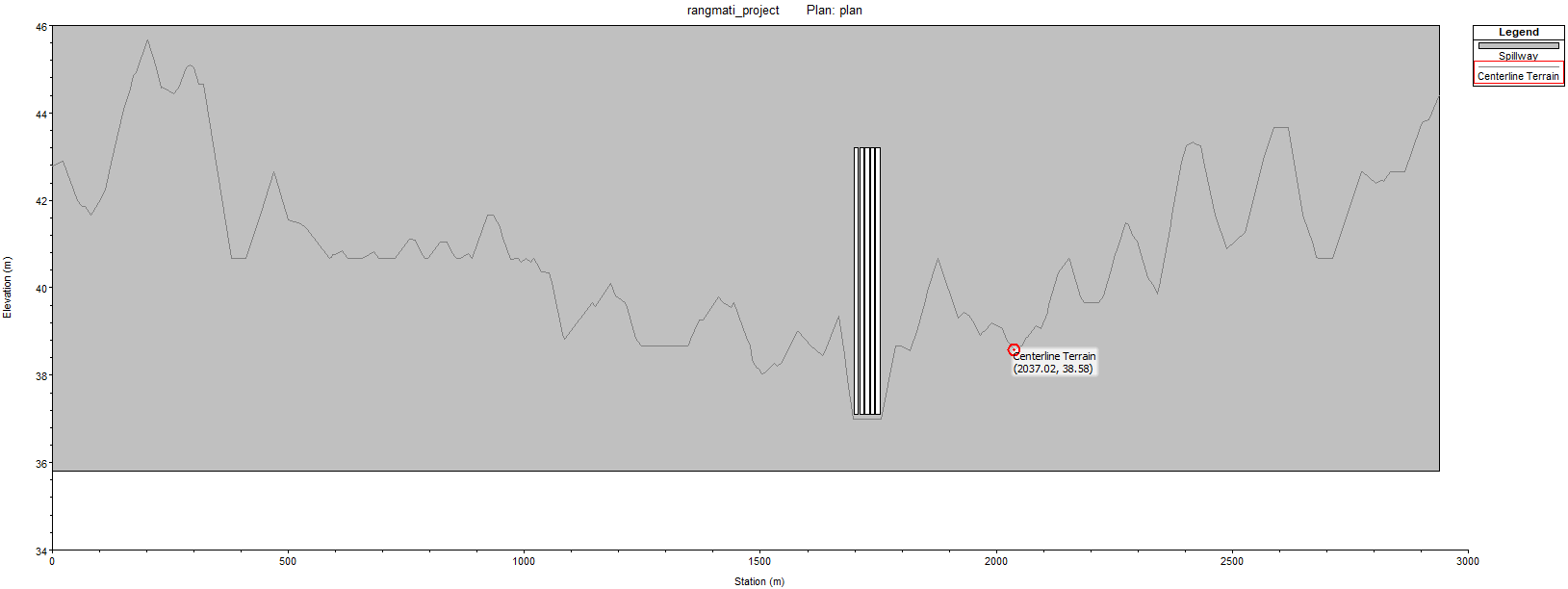

breach location (supplier): _infofiles/Rangmati__breach_location.png

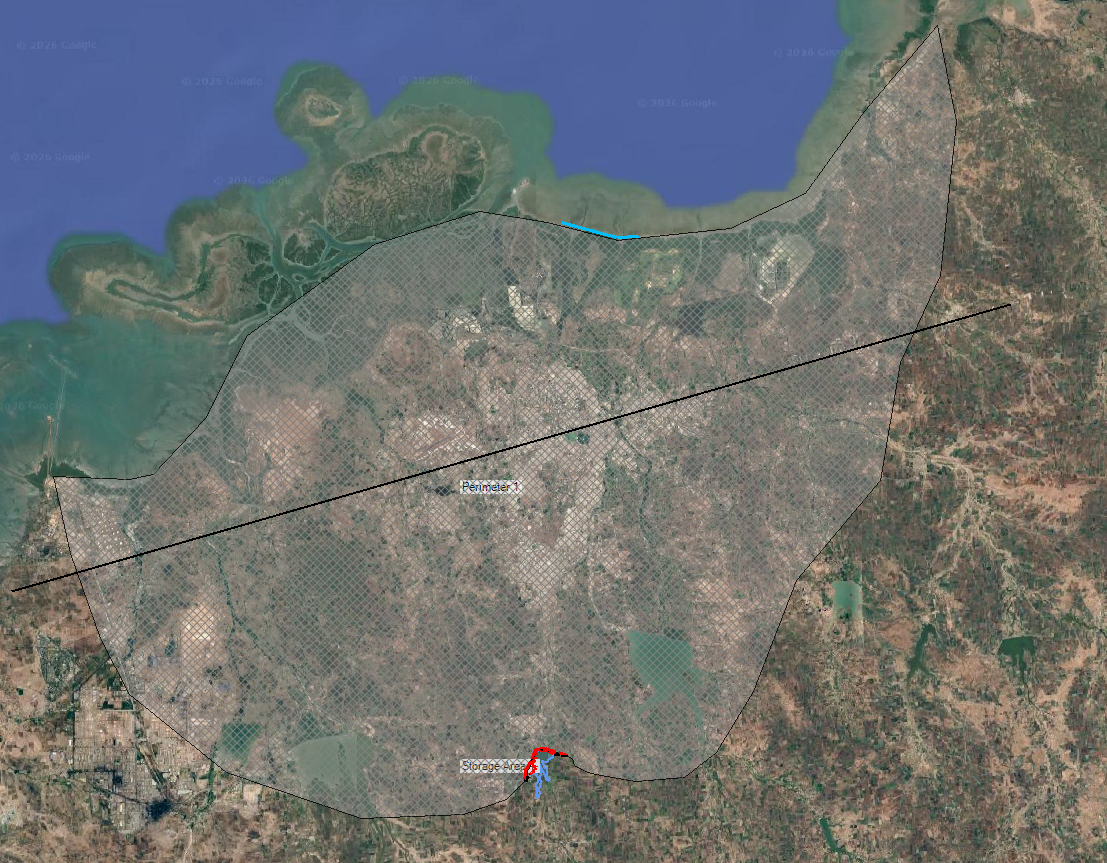

mesh: _infofiles/Rangmati__mesh.png
infofile: _infofiles/Rangmati__infofile.csv
DEM correction: _infofiles/Rangmati__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Rangmati
PAR / exposure: _par/Rangmati
EAP figures (exposure curve + warning scatter, log y): _figures/Rangmati
atlases: Rangmati__S_EG_00_REF__S01-FW-REF, Rangmati__S_EG_00__S02-FW-PIP, Rangmati__S_EG_01__S03-DF-REF, Rangmati__S_EG_02__S04-DF-OT, Rangmati__S_EG_05_SBL__S08-SO-L, Rangmati__S_EG_05_SBR__S09-SO-H, Rangmati__S_EG_06__S06-DF-OPS
