Raidy

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0762 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

Report thread · updated 2026-08-17T06:06:54+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Rebuilt and audited clean (0 findings). Its maps now resolve from the master, so the report is reproducible from the authoritative store rather than a local render tree.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0762
District	Amreli
Taluka	Khambha
River	Raidy
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Rolled filled type
FRL (m)	50.85
HFL (m)	50.85
Top of dam (m)	54.35
Spillway crest (m)	44.75
Design spillway capacity (m³/s)	2265.0
Gross storage (Mm³)	6.93
Catchment (km²)	142.4
Bed level, adopted (m)	41.05
Head, documented (m)	13.3
Head in DEM before correction (m)	16.214
Head after DEM correction (m)	13.3
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S01`	`S01-FW-REF`	retained	clean	0.00	9	—	—	—	—	`../Raidy/S01__S01-FW-REF/`	`9ac76f4a27c75688`	2026-08-07T18:18
`S02`	`S02-FW-PIP`	retained	clean	0.23	9	972.72	1,086.59	796.94	34.89	`../Raidy/S02__S02-FW-PIP/`	`7ad2e78e5a51d764`	2026-09-26T12:02
`S03`	`S03-DF-REF`	retained	clean	0.01	9	—	—	—	—	`../Raidy/S03__S03-DF-REF/`	`1769d0ee2a208bb1`	2026-08-07T18:18
`S04`	`S04-DF-OT`	retained	clean	0.04	9	3,102.44	3,482.13	775.64	68.40	`../Raidy/S04__S04-DF-OT/`	`c154cb63f7bfdd0c`	2026-09-26T12:21
`S05`	`S06-DF-OPS`	retained	clean	0.03	9	—	—	—	—	`../Raidy/S05__S06-DF-OPS/`	`f178bf658c3653c2`	2026-08-07T18:18
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.03	9	2,915.17	—	853.27	44.10	`../Raidy/S_EG_05_SBL__S08-SO-L/`	`be42362bdb20d4dd`	2026-08-13T02:27
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.03	9	2,915.15	—	911.53	44.10	`../Raidy/S_EG_05_SBR__S09-SO-H/`	`afba310d747abeef`	2026-08-13T02:27

Assets

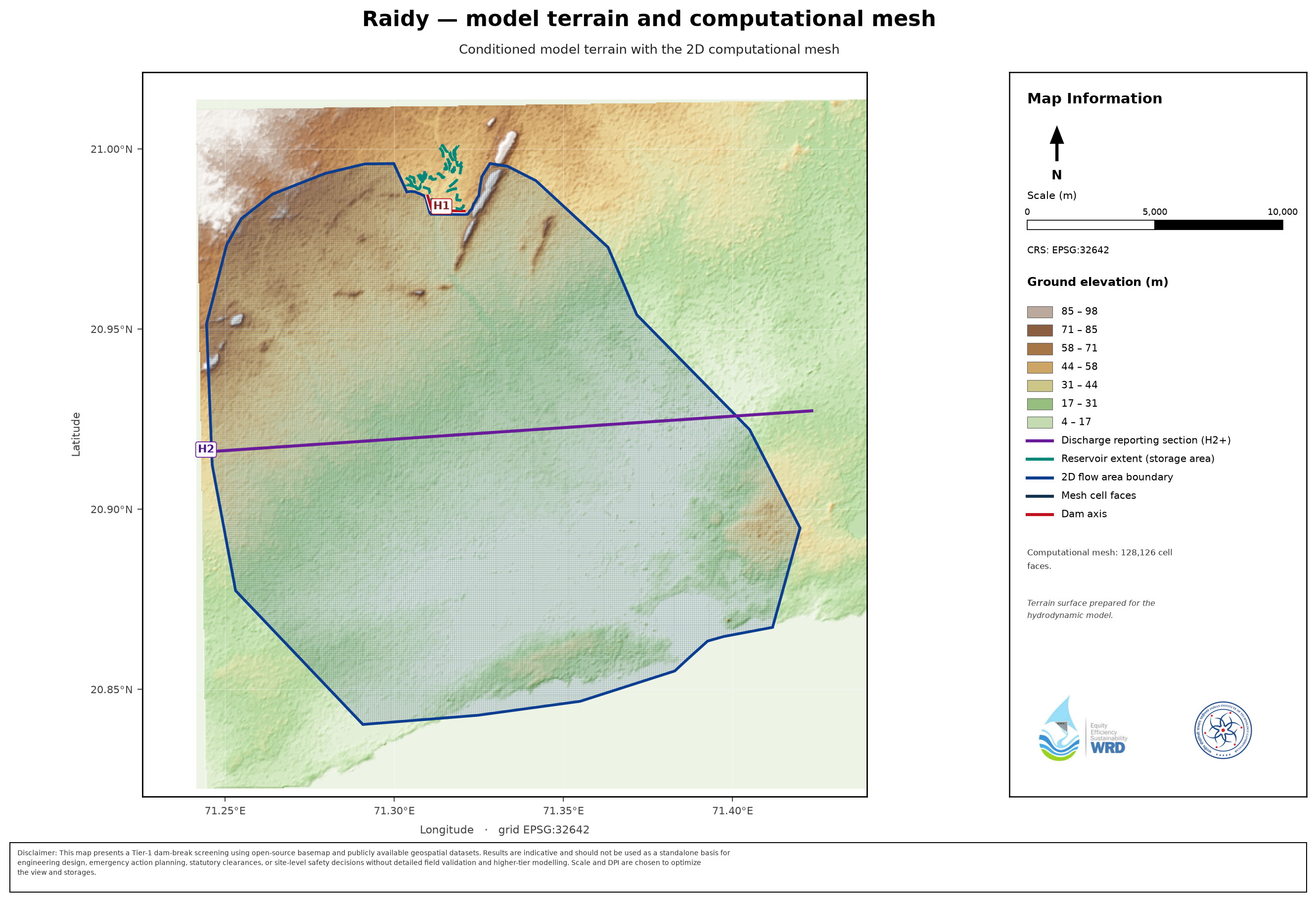

terrain plate (Fig 3.1): _maps/Raidy__dem.png

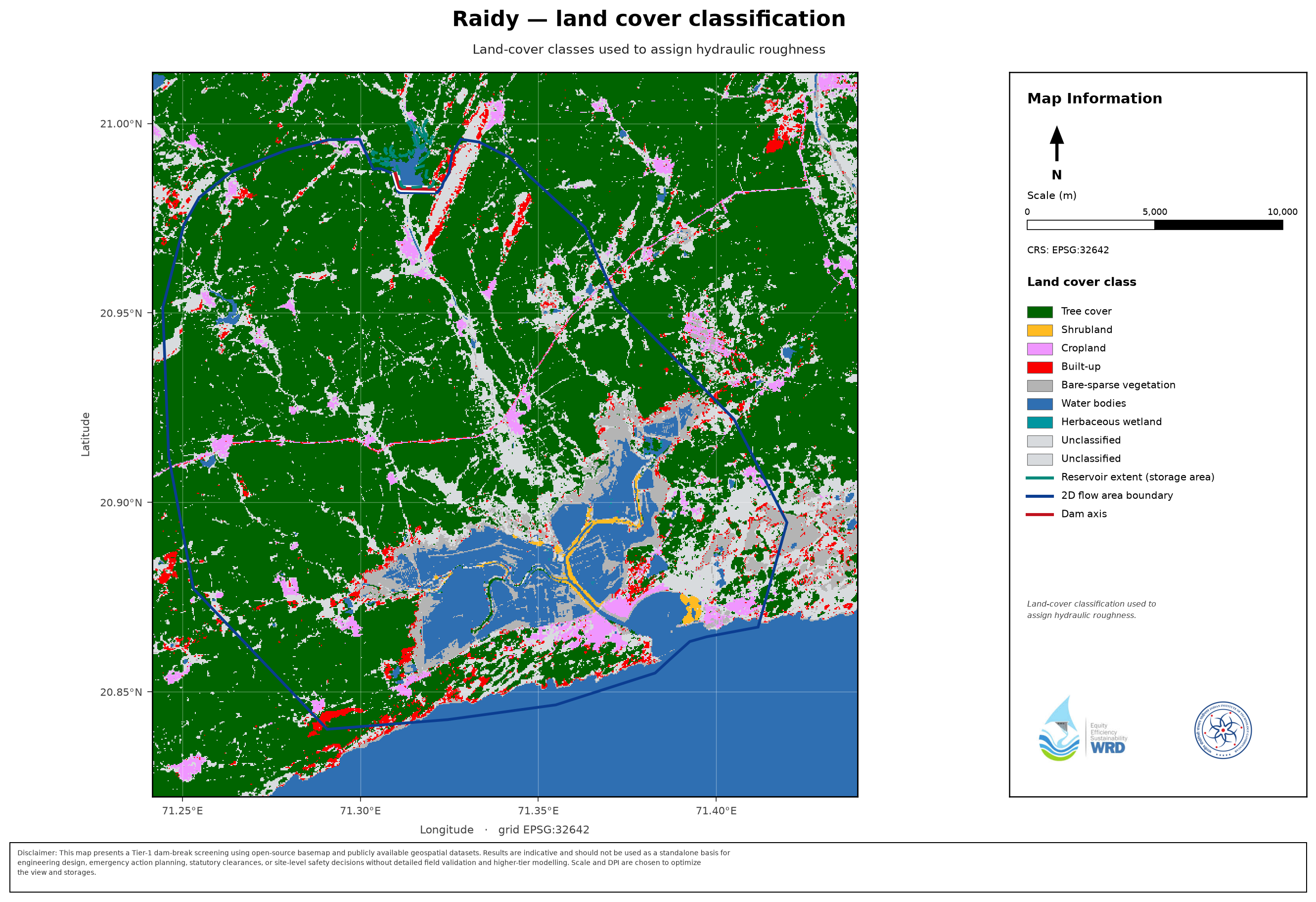

land-cover plate (Fig 3.2): _maps/Raidy__lulc.png
storage curve: _storage_curves/Raidy__storage_elevation.csv
inflow flood hydrograph: _infofiles/Raidy__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Raidy__inflow_baseflow_hydrograph.csv

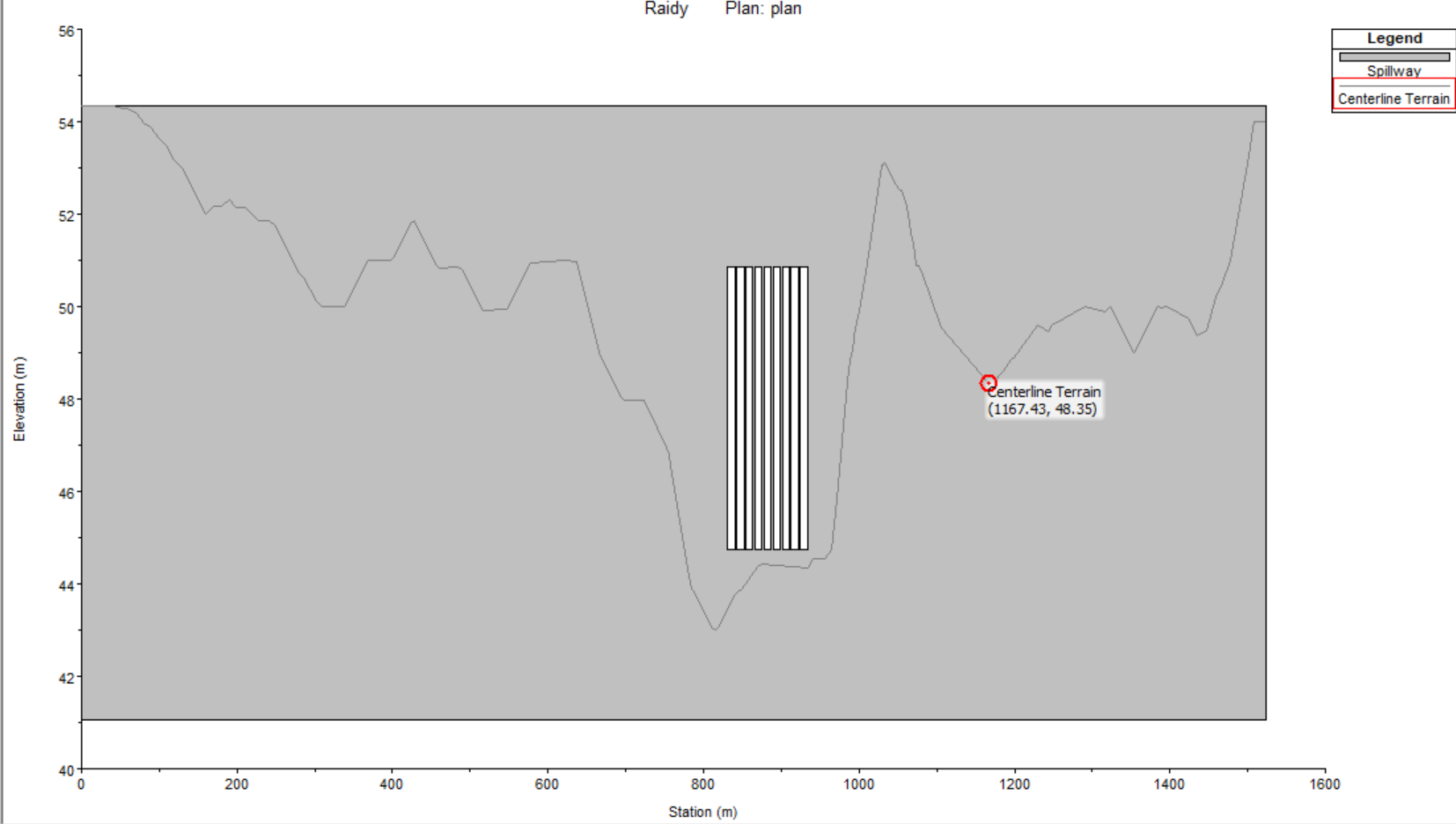

breach location (supplier): _infofiles/Raidy__breach_location.png

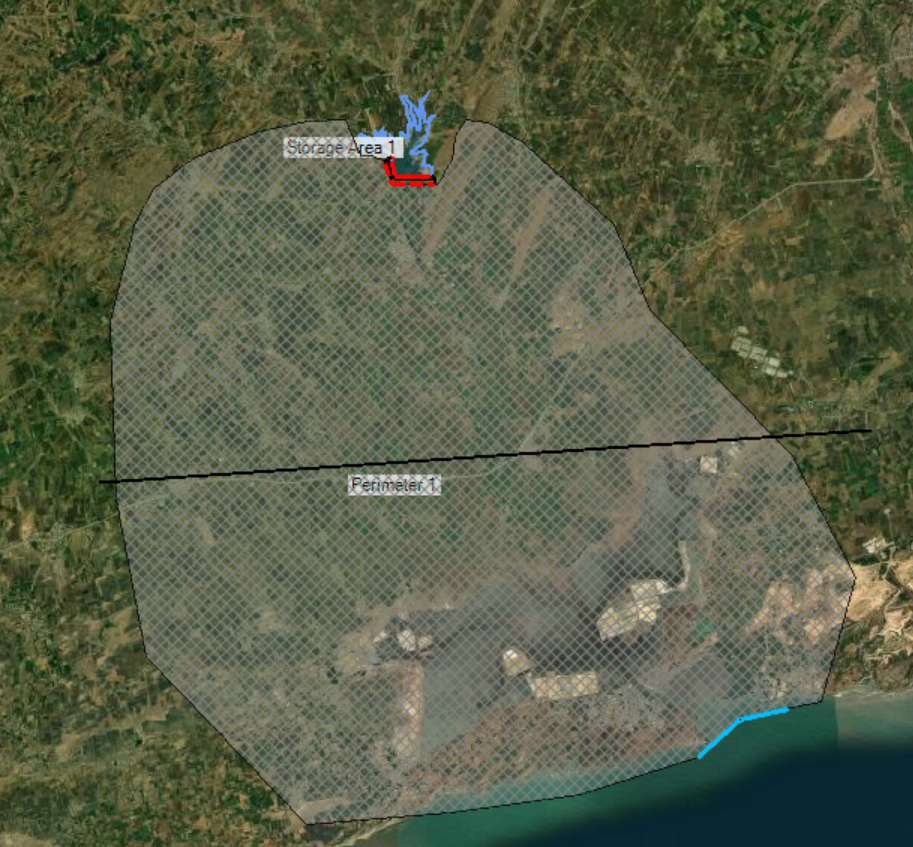

mesh: _infofiles/Raidy__mesh.png
infofile: _infofiles/Raidy__infofile.csv
DEM correction: _infofiles/Raidy__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Raidy
PAR / exposure: _par/Raidy
EAP figures (exposure curve + warning scatter, log y): _figures/Raidy
atlases: Raidy__S01__S01-FW-REF, Raidy__S02__S02-FW-PIP, Raidy__S03__S03-DF-REF, Raidy__S04__S04-DF-OT, Raidy__S05__S06-DF-OPS, Raidy__S_EG_05_SBL__S08-SO-L, Raidy__S_EG_05_SBR__S09-SO-H
