Pigut

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04MH0414 · CRS EPSG:32643

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04MH0414
District	Bharuch
Taluka	Netrang
River	Tokari River
Projected CRS	EPSG:32643 / UTM Zone 43N (WGS 84)
Dam type	Rolled filled Zone type
FRL (m)	139.7
HFL (m)	141.34
Top of dam (m)	144.85
Spillway crest (m)	139.7
Gross storage (Mm³)	7.019
Catchment (km²)	21.25
Bed level, adopted (m)	129.0
Head, documented (m)	15.85
Head in DEM before correction (m)	15.85
Head after DEM correction (m)	15.85
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.35	9	1,578.02	1,641.87	962.00	34.53	`../Pigut/S_EG_00__S02-FW-PIP/`	`fbb985ae8d4904a4`	2026-09-27T11:55
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.02	9	—	—	—	—	`../Pigut/S_EG_00_REF__S01-FW-REF/`	`f3c3a2186f554e8c`	2026-09-27T11:32
`S_EG_01`	`S03-DF-REF`	retained	clean	0.10	9	—	—	—	—	`../Pigut/S_EG_01__S03-DF-REF/`	`bb24f907f285d60d`	2026-10-10T01:36
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.27	9	2,098.65	2,262.63	962.00	38.94	`../Pigut/S_EG_03__S05-DF-PIP/`	`8ad9617e101b2113`	2026-10-10T01:40
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.15	9	795.37	—	1,640.50	60.00	`../Pigut/S_EG_05_SBL__S08-SO-L/`	`bdd7d2badf03fe17`	2026-10-10T01:41
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.27	9	722.18	—	1,705.50	60.00	`../Pigut/S_EG_05_SBR__S09-SO-H/`	`1be09803017fc259`	2026-10-10T01:42

Assets

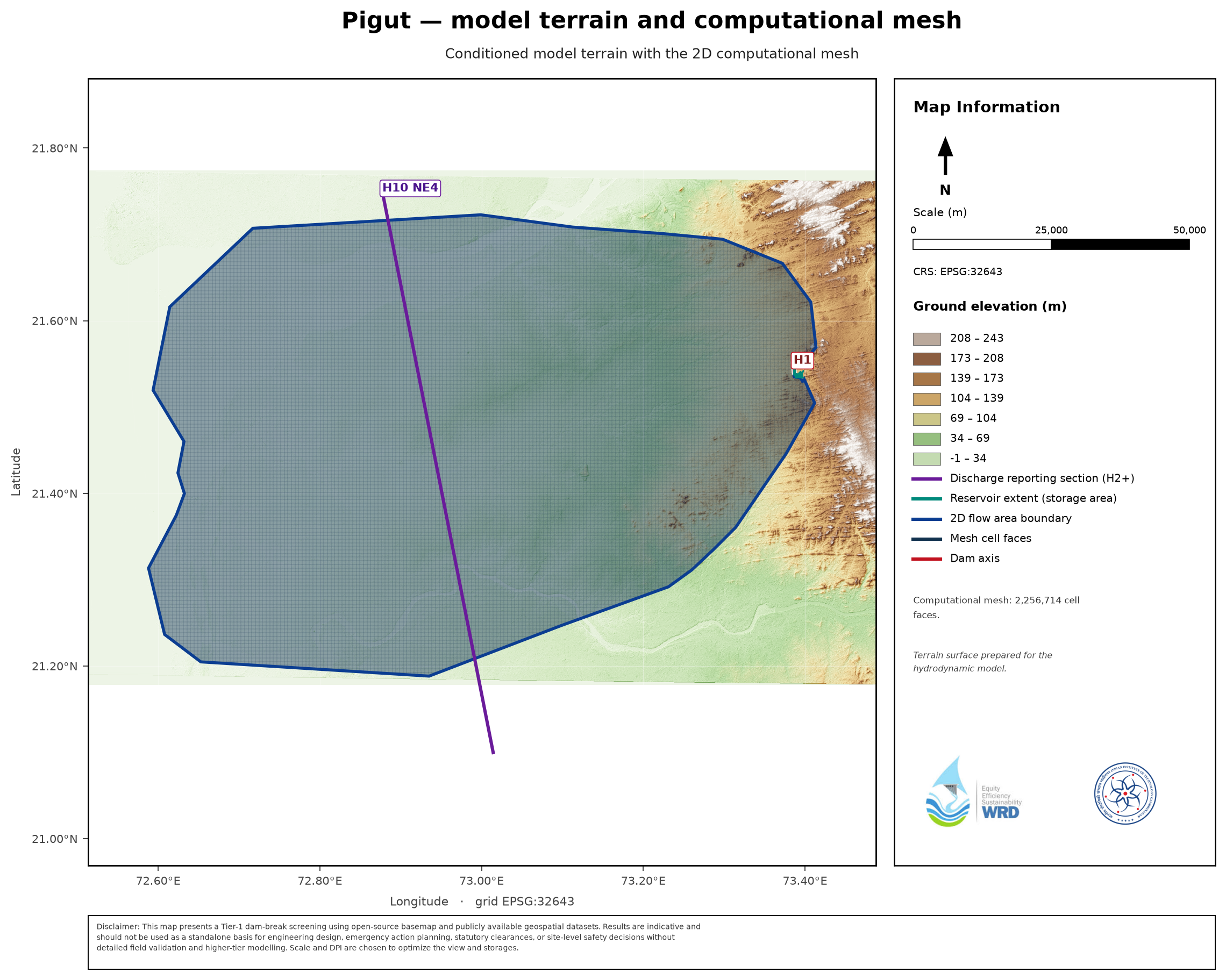

terrain plate (Fig 3.1): _maps/Pigut__dem.png

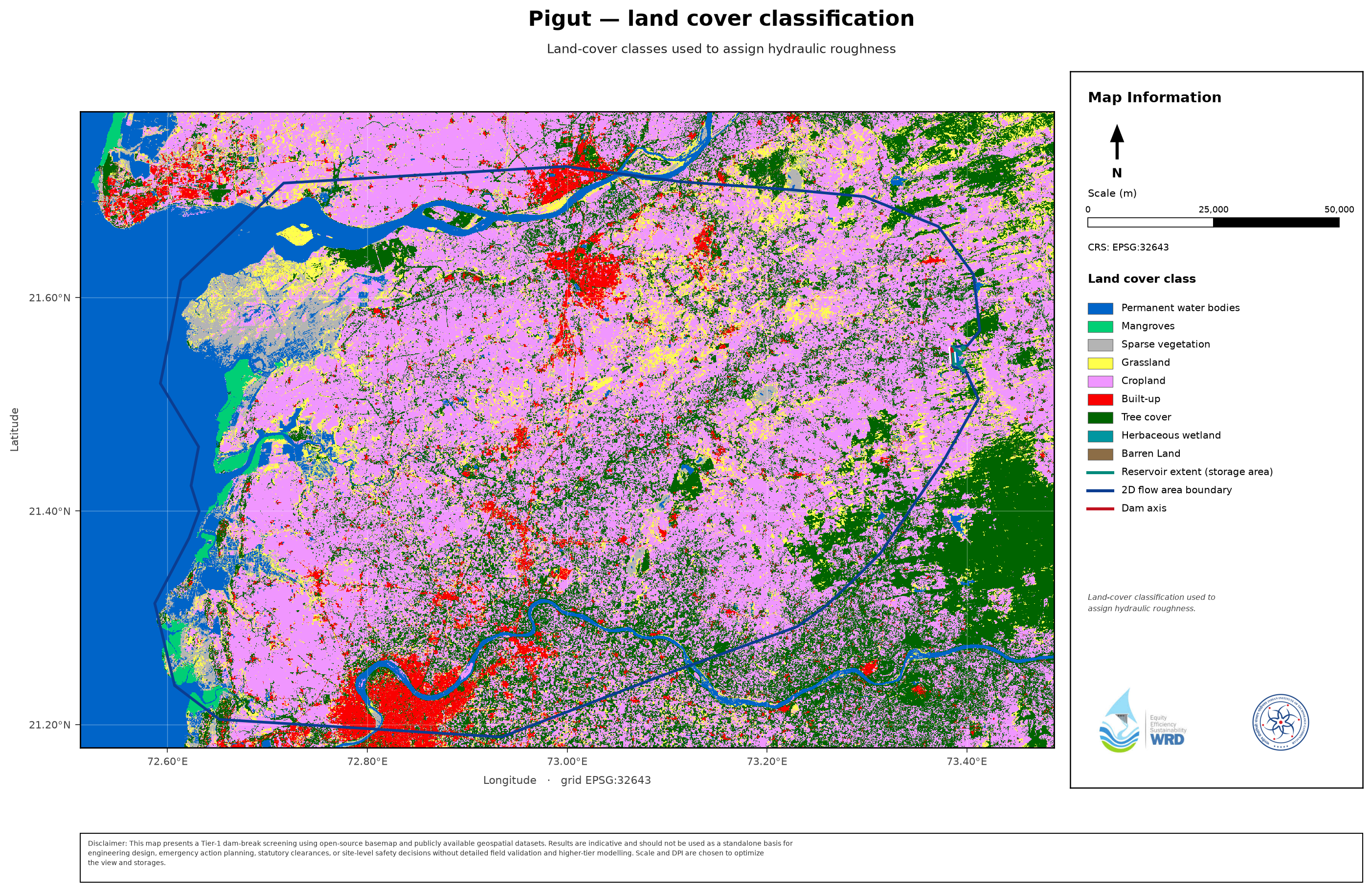

land-cover plate (Fig 3.2): _maps/Pigut__lulc.png
storage curve: _storage_curves/Pigut__storage_elevation.csv
inflow flood hydrograph: _infofiles/Pigut__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Pigut__inflow_baseflow_hydrograph.csv
breach location (supplier): _infofiles/Pigut__breach_location.png
mesh: _infofiles/Pigut__mesh.png
infofile: _infofiles/Pigut__infofile.csv
DEM correction: _infofiles/Pigut__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Pigut
PAR / exposure: _par/Pigut
EAP figures (exposure curve + warning scatter, log y): _figures/Pigut
atlases: Pigut__S_EG_00_REF__S01-FW-REF, Pigut__S_EG_00__S02-FW-PIP, Pigut__S_EG_01__S03-DF-REF, Pigut__S_EG_03__S05-DF-PIP, Pigut__S_EG_05_SBL__S08-SO-L, Pigut__S_EG_05_SBR__S09-SO-H
