Munjiyasar

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0761 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

Report thread · updated 2026-08-17T06:53:00+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Delivered package stands. 1 map-geometry finding(s) open: map types within a scenario drawn on different numbers of sheets, or an index sheet naming a count its sheets contradict. In the run thread's repair queue. No exposure, population or consequence figure is affected.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0761
District	Amreli
Taluka	BAGASARA
River	SATALI
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Earthen
FRL (m)	62.95
HFL (m)	64.46
Top of dam (m)	66.6
Spillway crest (m)	62.938
Design spillway capacity (m³/s)	1184.0
Gross storage (Mm³)	14.734080544000001
Catchment (km²)	101.78
Bed level, adopted (m)	53.7
Head, documented (m)	12.9
Head in DEM before correction (m)	-88.15
Head after DEM correction (m)	12.9
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	reran · accepted	clean	0.13	8	1,839.92	2,812.58	1,753.00	52.78	`../Munjiyasar/S_EG_00__S02-FW-PIP/`	`4d8811399071e9a2`	2026-09-26T22:08
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Munjiyasar/S_EG_00_REF__S01-FW-REF/`	`22758e06c7b9c137`	2026-08-16T04:59
`S_EG_01`	`S03-DF-REF`	retained	clean	0.02	8	—	—	—	—	`../Munjiyasar/S_EG_01__S03-DF-REF/`	`1874156622d31a67`	2026-08-16T06:50
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.05	8	3,334.53	5,211.80	1,753.00	68.27	`../Munjiyasar/S_EG_03__S05-DF-PIP/`	`72f054ce11f0c3bd`	2026-10-03T03:09
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.03	8	575.96	—	67.93	60.00	`../Munjiyasar/S_EG_05_SBL__S08-SO-L/`	`ddfbf7e6bc7b49c4`	2026-08-16T07:37
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.03	8	1,206.84	—	372.98	60.00	`../Munjiyasar/S_EG_05_SBR__S09-SO-H/`	`13a49d203047fb4a`	2026-08-16T07:55

Assets

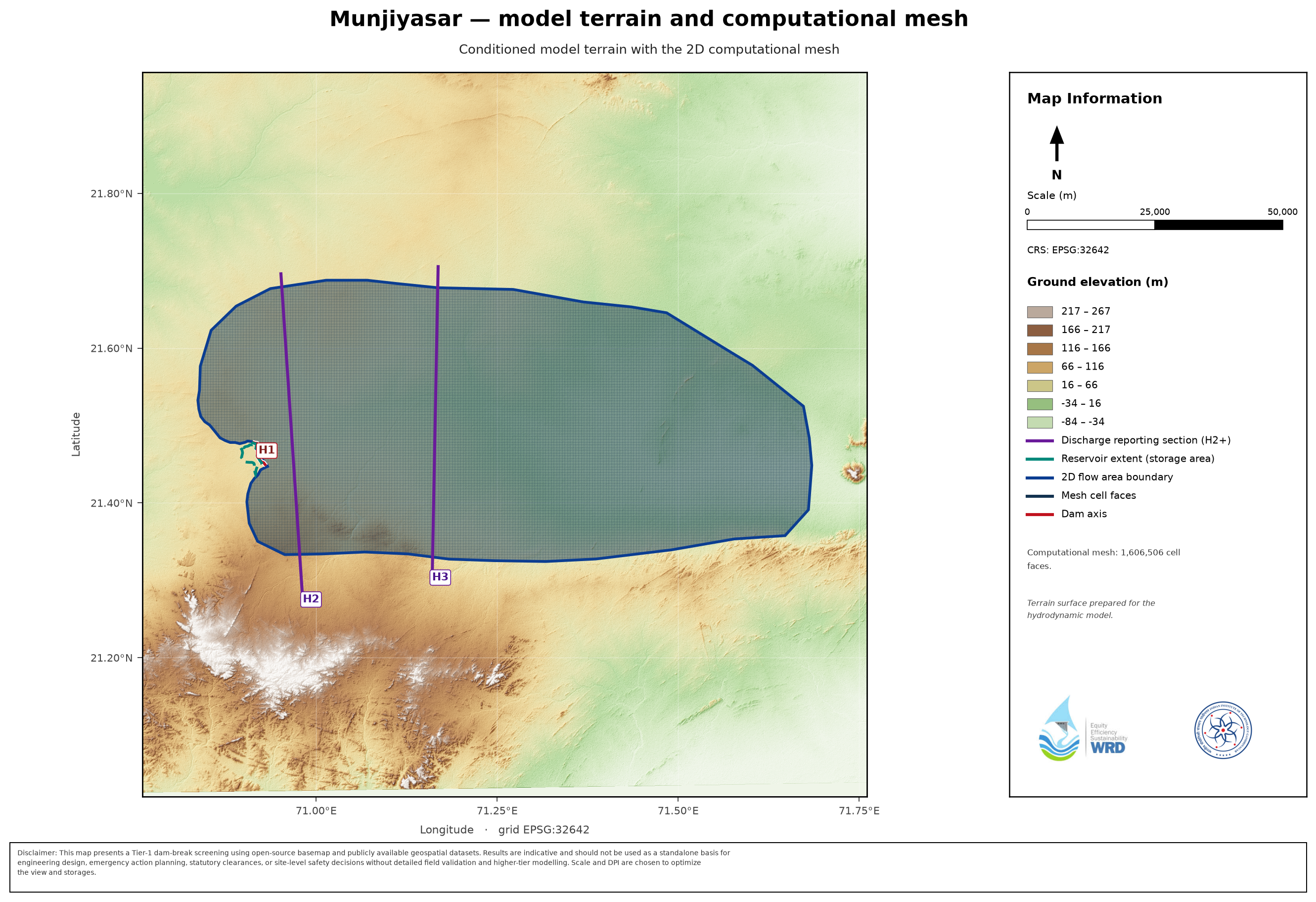

terrain plate (Fig 3.1): _maps/Munjiyasar__dem.png

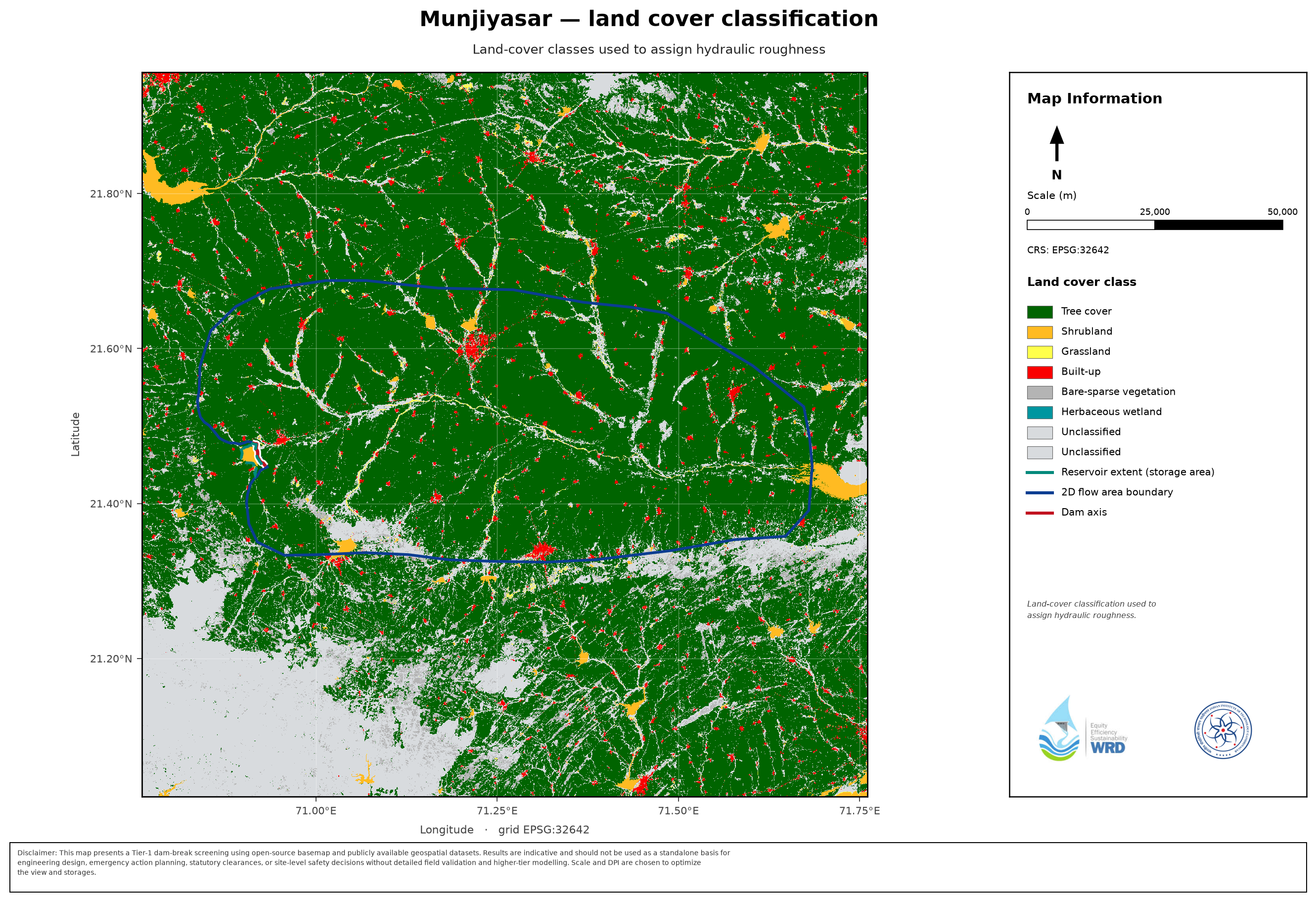

land-cover plate (Fig 3.2): _maps/Munjiyasar__lulc.png
storage curve: _storage_curves/Munjiyasar__storage_elevation.csv
inflow flood hydrograph: _infofiles/Munjiyasar__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Munjiyasar__inflow_baseflow_hydrograph.csv

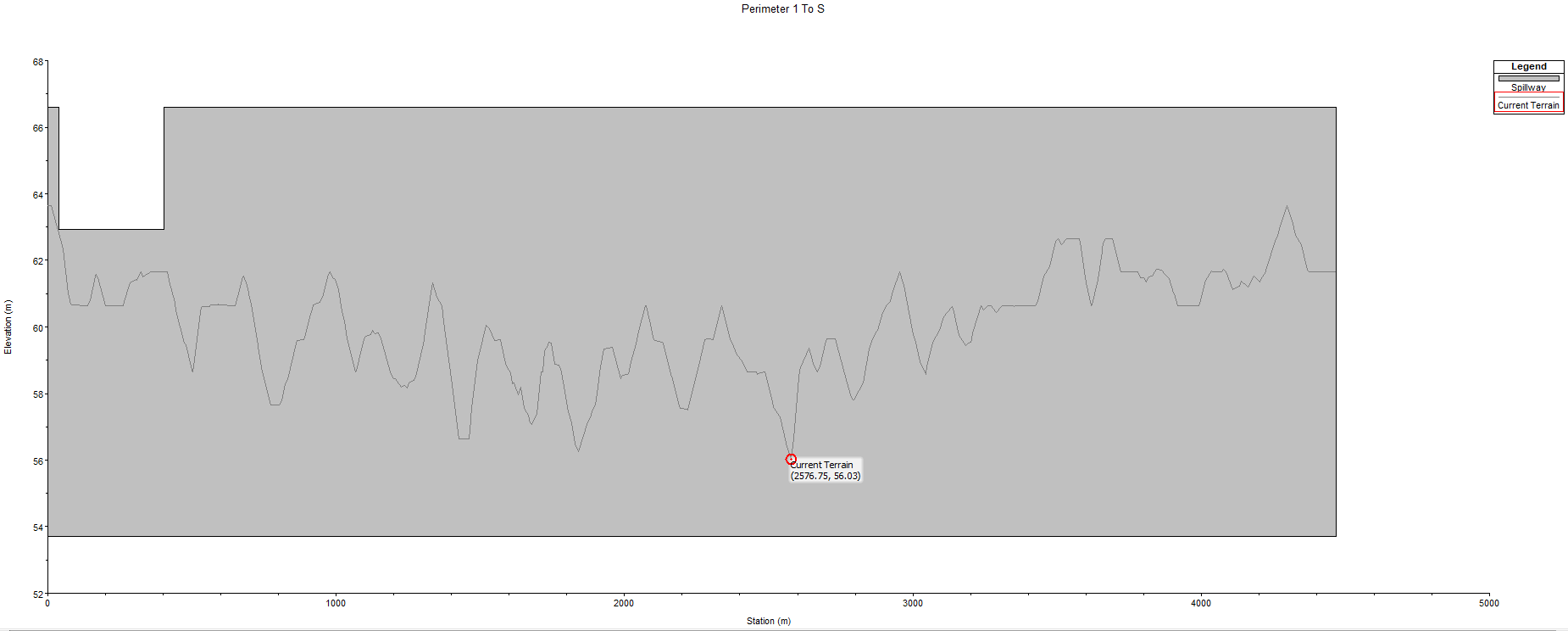

breach location (supplier): _infofiles/Munjiyasar__breach_location.png

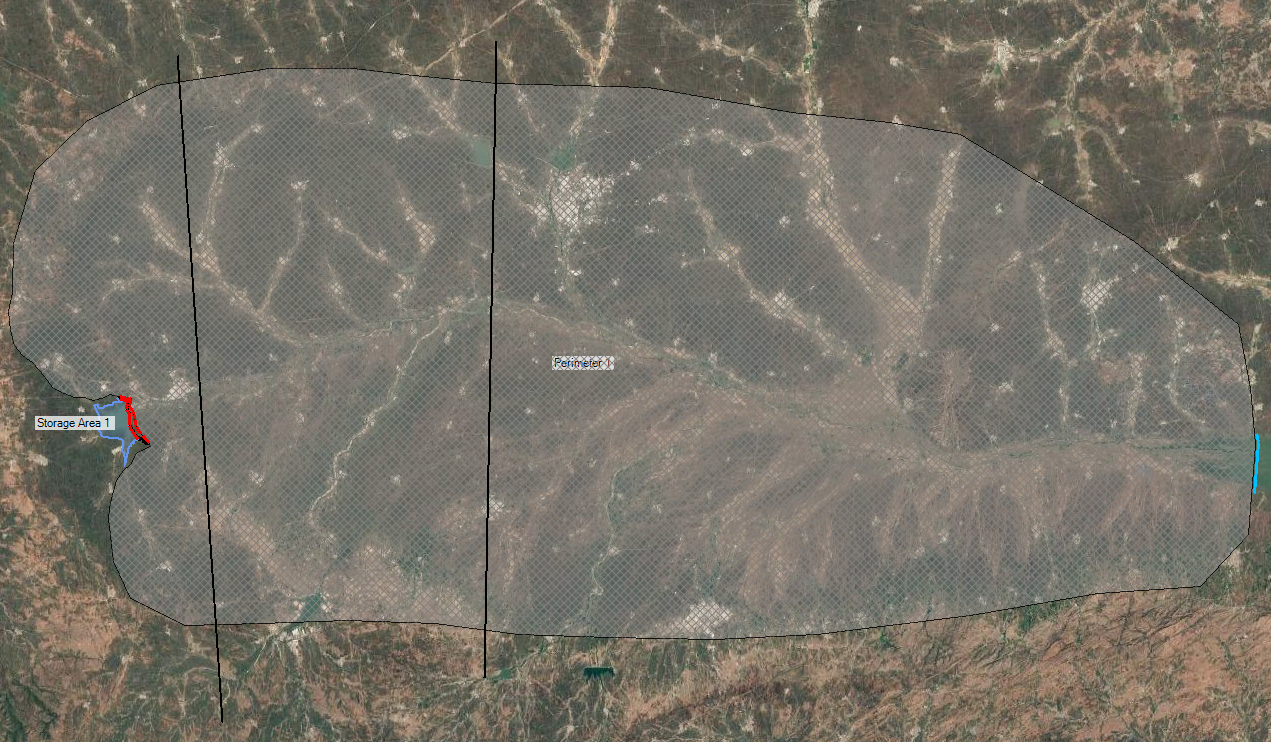

mesh: _infofiles/Munjiyasar__mesh.png
infofile: _infofiles/Munjiyasar__infofile.csv
DEM correction: _infofiles/Munjiyasar__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Munjiyasar
PAR / exposure: _par/Munjiyasar
EAP figures (exposure curve + warning scatter, log y): _figures/Munjiyasar
atlases: Munjiyasar__S_EG_00_REF__S01-FW-REF, Munjiyasar__S_EG_00__S02-FW-PIP, Munjiyasar__S_EG_01__S03-DF-REF, Munjiyasar__S_EG_03__S05-DF-PIP, Munjiyasar__S_EG_05_SBL__S08-SO-L, Munjiyasar__S_EG_05_SBR__S09-SO-H

Defect ledger

run id	status	replacement sha	old sha (do not use)
`S_EG_00_REF`	DEFECT FIXED	`22758e06c7b9c137`	`3eb90e0a4c05cfb5`
`S_EG_01`	DEFECT FIXED	`1874156622d31a67`	`e60571113f291e30`
`S_EG_03`	DEFECT FIXED	`72f054ce11f0c3bd`	`125657789a83685f`
`S_EG_05_SBL`	DEFECT FIXED	`ddfbf7e6bc7b49c4`	`0d87bcfc6e3816d0`
`S_EG_05_SBR`	DEFECT FIXED	`13a49d203047fb4a`	`7e2141c7904ee5b6`
