Kharo

all dams · full registry · generated 2026-08-16 11:18 · PIC GJ208MH0770 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

Assets pending — not ready to print: atlases (2 scn)

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.86	9	1,249.27	1,971.38	624.07	45.09	`../Kharo/S_EG_00__S02-FW-PIP/`	`3ae08a242767a02a`	2026-08-09T18:03
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	9	—	—	—	—	`../Kharo/S_EG_00_REF__S01-FW-REF/`	`5485fee3cf6671fe`	2026-08-09T18:03
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	9	—	—	—	—	`../Kharo/S_EG_01__S03-DF-REF/`	`a005576e07547913`	2026-08-09T18:03
`S_EG_02`	`S04-DF-OT`	reran · accepted	clean	0.35	9	4,171.21	5,951.07	624.07	89.94	`../Kharo/S_EG_02__S04-DF-OT/`	`08f026fb941efc1c`	2026-08-15T14:17
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.03	9	3,139.90	—	785.41	44.66	`../Kharo/S_EG_05_SBL__S08-SO-L/`	`1b1521d72cbc52c8`	2026-08-09T18:03
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.09	9	3,134.13	—	912.91	44.66	`../Kharo/S_EG_05_SBR__S09-SO-H/`	`85d826be765730d3`	2026-08-09T18:03
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.04	9	—	—	—	—	`../Kharo/S_EG_06__S06-DF-OPS/`	`9b35c28361195395`	2026-08-09T18:03

Assets

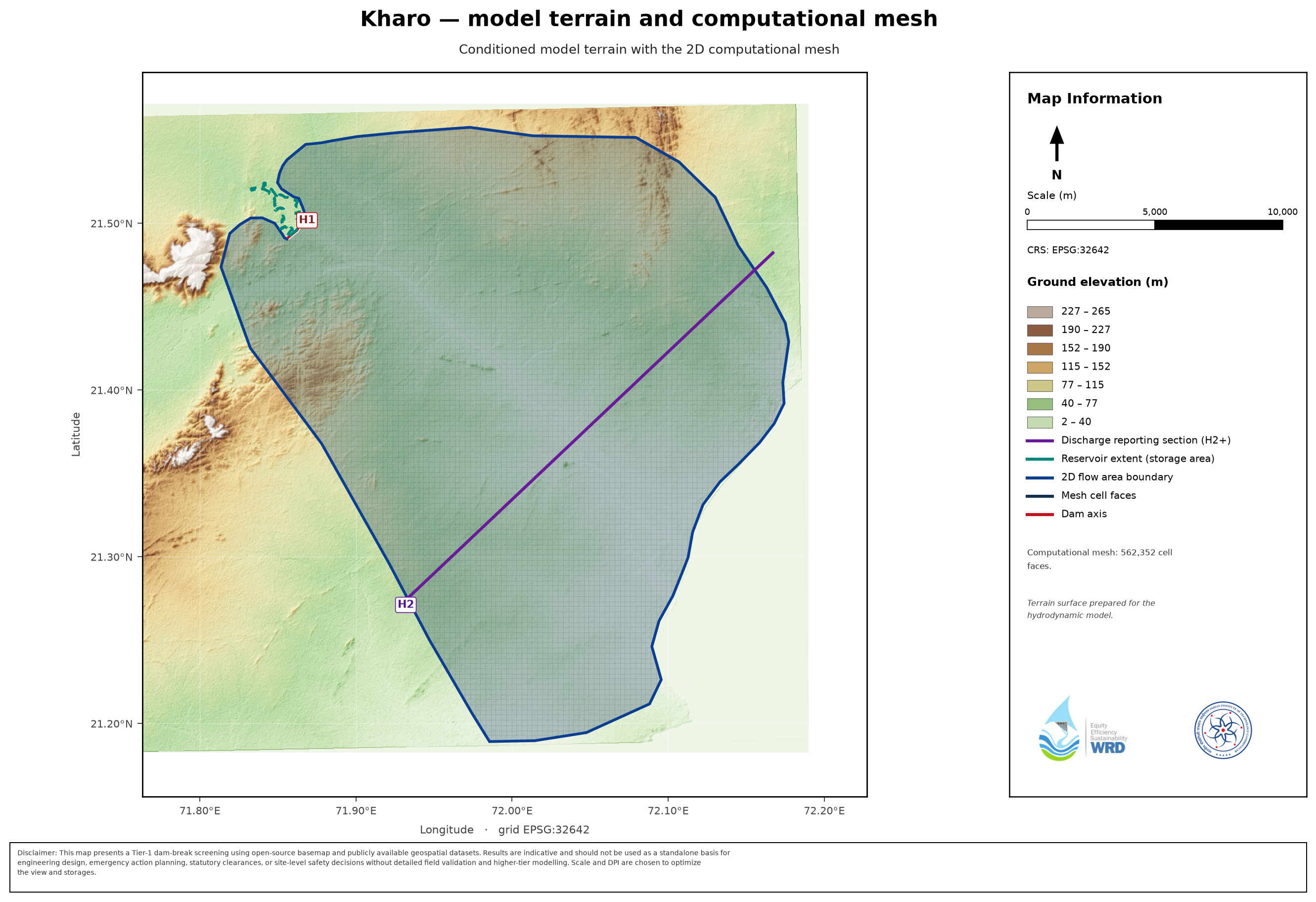

terrain plate (Fig 3.1): _maps/Kharo__dem.png

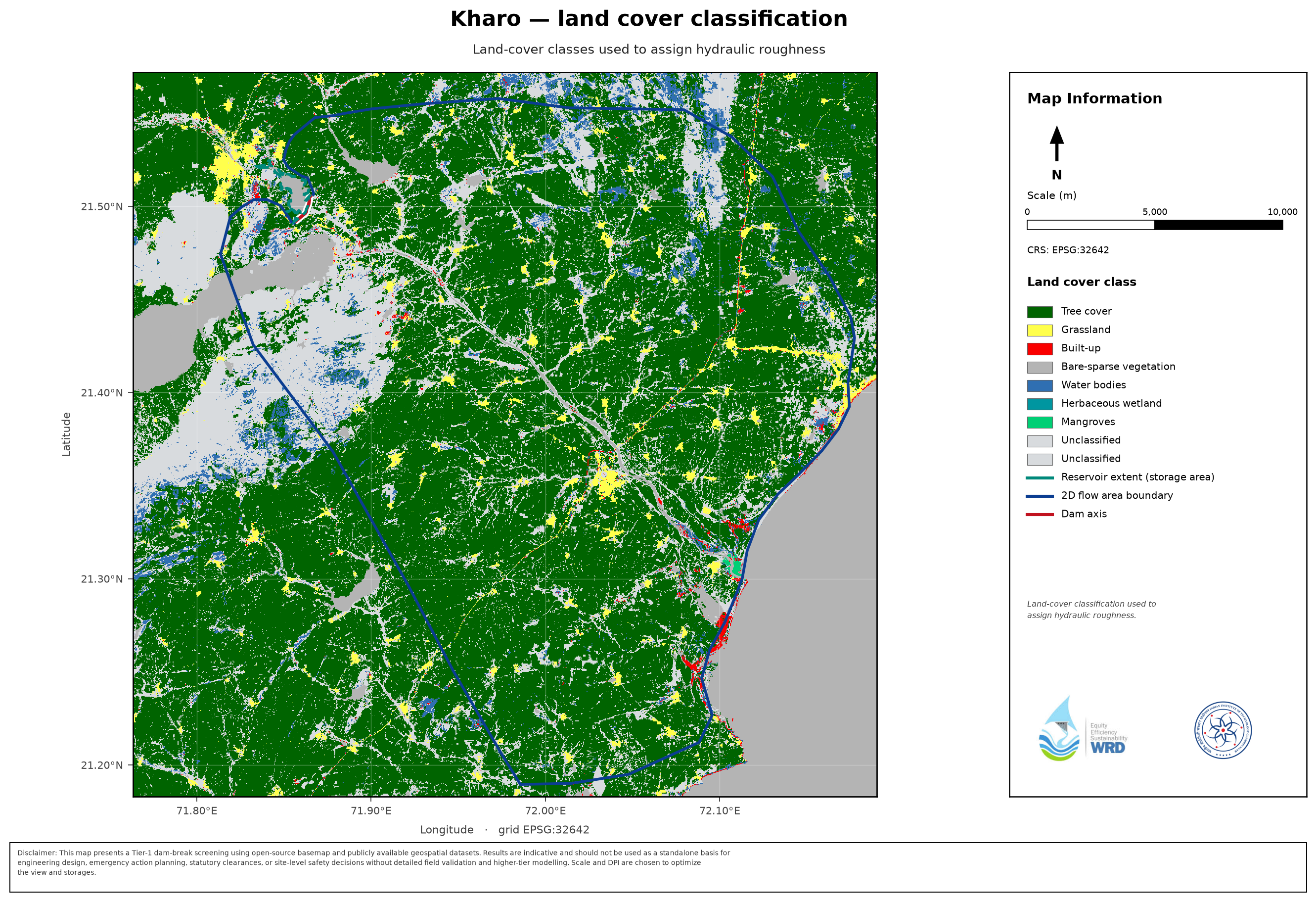

land-cover plate (Fig 3.2): _maps/Kharo__lulc.png
storage curve: _storage_curves/Kharo__storage_elevation.csv
inflow flood hydrograph: _infofiles/Kharo__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Kharo__inflow_baseflow_hydrograph.csv

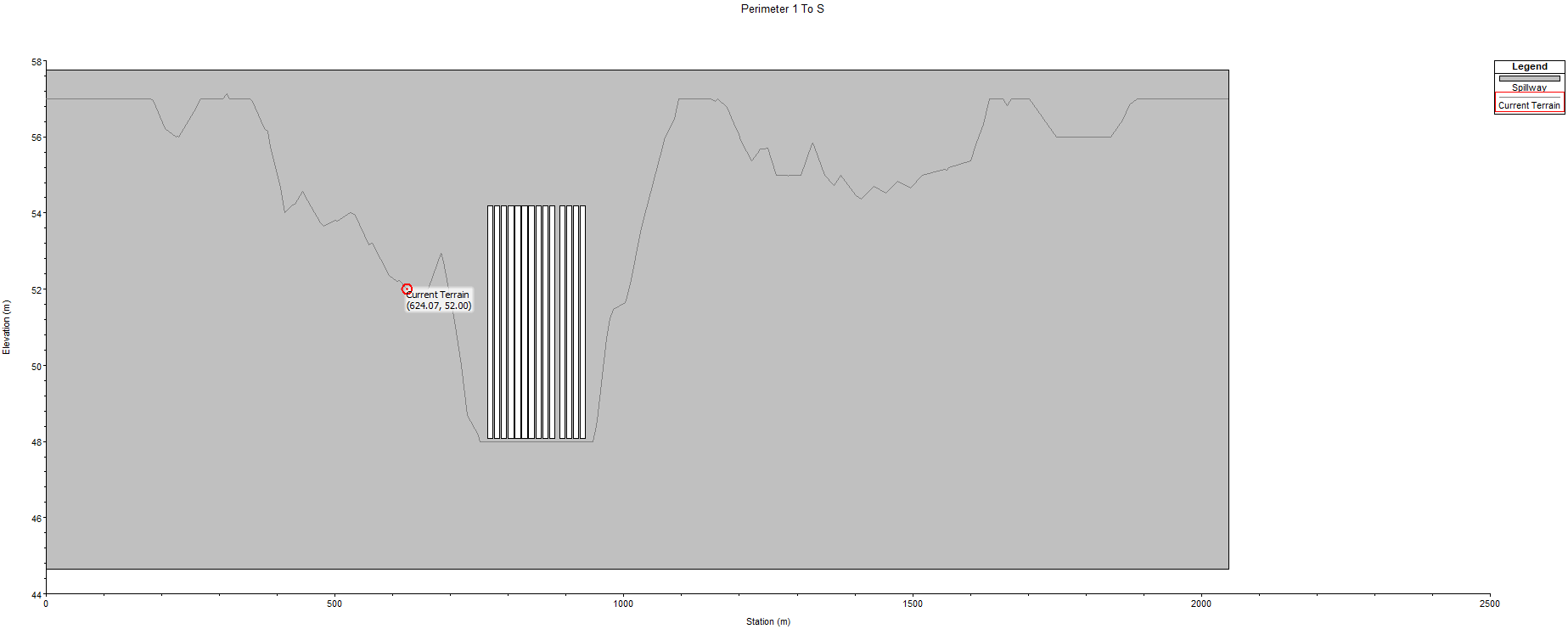

breach location (supplier): _infofiles/Kharo__breach_location.png

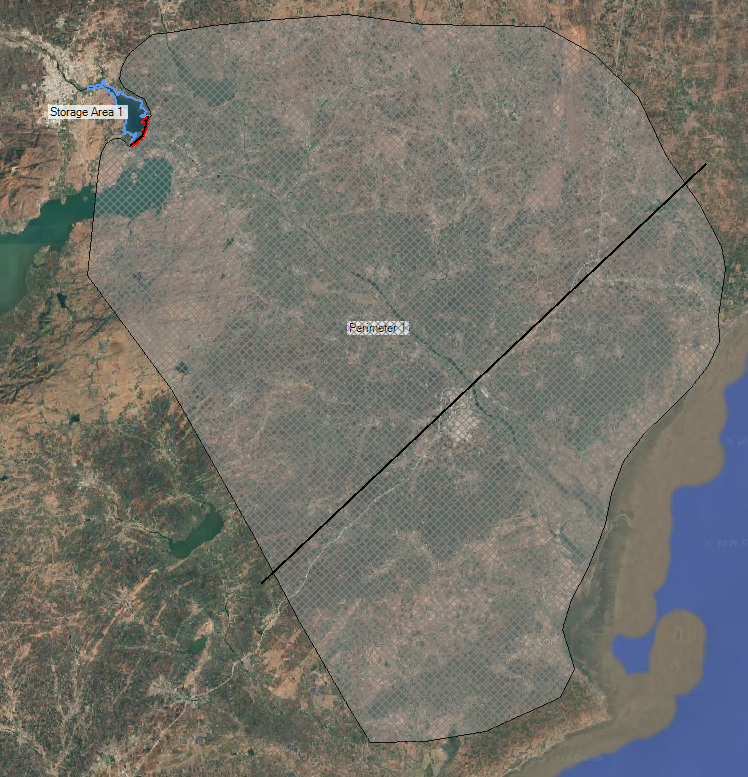

mesh: _infofiles/Kharo__mesh.png
infofile: _infofiles/Kharo__infofile.csv
DEM correction: _infofiles/Kharo__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Kharo
PAR / exposure: _par/Kharo
EAP figures (exposure curve + warning scatter, log y): _figures/Kharo
atlases: Kharo__S_EG_00__S02-FW-PIP, Kharo__S_EG_01__S03-DF-REF, Kharo__S_EG_05_SBL__S08-SO-L, Kharo__S_EG_05_SBR__S09-SO-H, Kharo__S_EG_06__S06-DF-OPS
