Dijio

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208LH0790 · CRS EPSG:32643

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2.1 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208LH0790
District	Sabarkantha
Taluka	Khedbrahma
River	Digio
Projected CRS	EPSG:32643 / UTM Zone 43N (WGS 84)
Dam type	Earthen
FRL (m)	106.45
HFL (m)	107.6
Top of dam (m)	109.7
Spillway crest (m)	106.25
Design spillway capacity (m³/s)	249.9
Gross storage (Mm³)	1.72
Catchment (km²)	12.95
Bed level, adopted (m)	95.5
Head, documented (m)	14.2
Head in DEM before correction (m)	10.0
Head after DEM correction (m)	14.2
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.24	8	783.88	711.53	618.00	19.27	`../Dijio/S_EG_00__S02-FW-PIP/`	`71bc1f4db25883ff`	2026-08-26T14:41
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.13	8	—	—	—	—	`../Dijio/S_EG_00_REF__S01-FW-REF/`	`f0303388567e4e28`	2026-08-26T11:14
`S_EG_01`	`S03-DF-REF`	retained	clean	0.02	8	—	—	—	—	`../Dijio/S_EG_01__S03-DF-REF/`	`baed0cb12bb857a6`	2026-08-26T11:24
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.15	8	1,040.29	995.67	618.00	22.07	`../Dijio/S_EG_03__S05-DF-PIP/`	`1a89802c5d1f6ffb`	2026-08-26T11:26
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.12	8	615.71	—	63.40	60.00	`../Dijio/S_EG_05_SBL__S08-SO-L/`	`5af9b1031d6ffbee`	2026-08-26T11:28
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.78	8	320.39	—	125.40	60.00	`../Dijio/S_EG_05_SBR__S09-SO-H/`	`433f47f4a3b86453`	2026-08-26T11:31

Assets

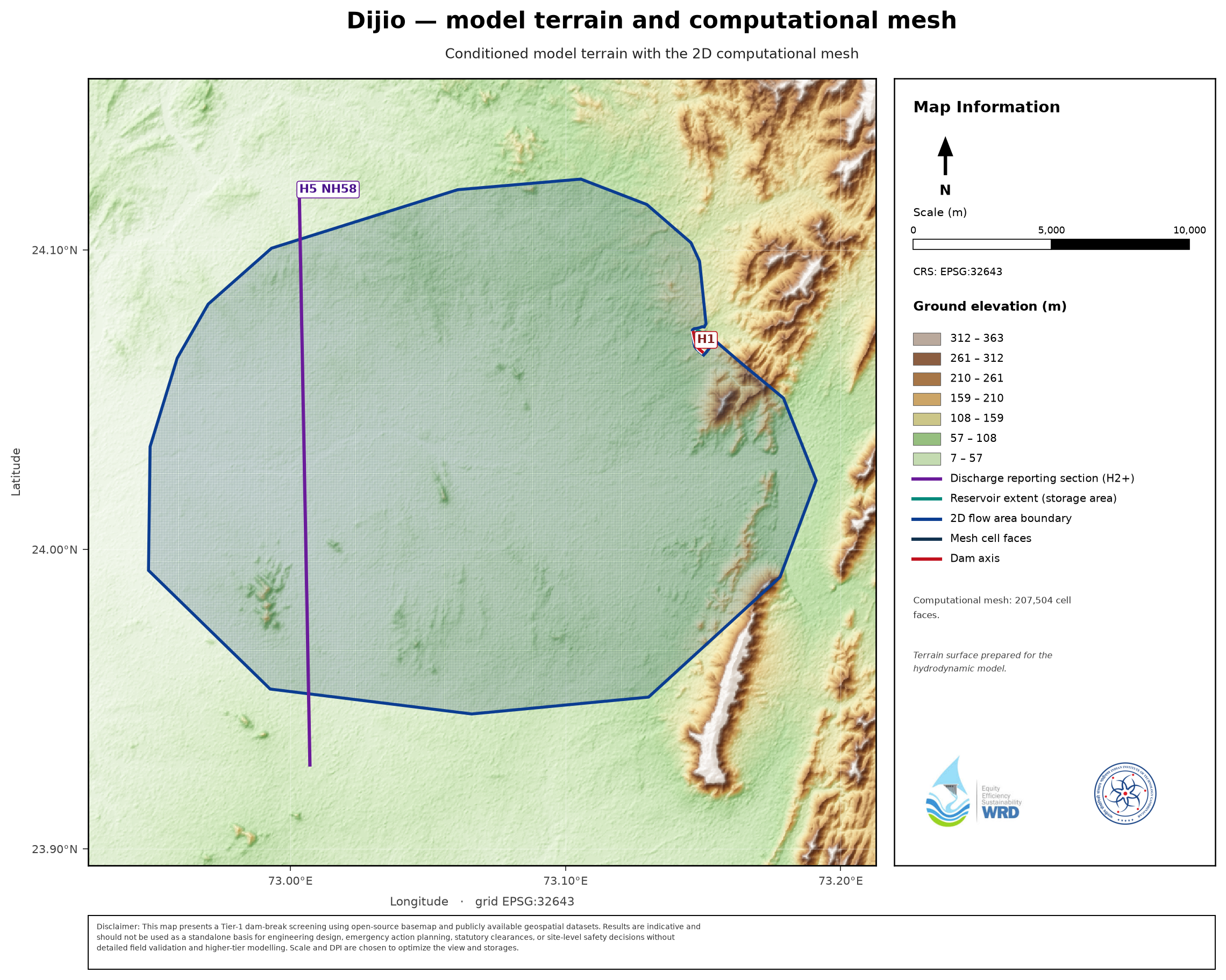

terrain plate (Fig 3.1): _maps/Dijio__dem.png

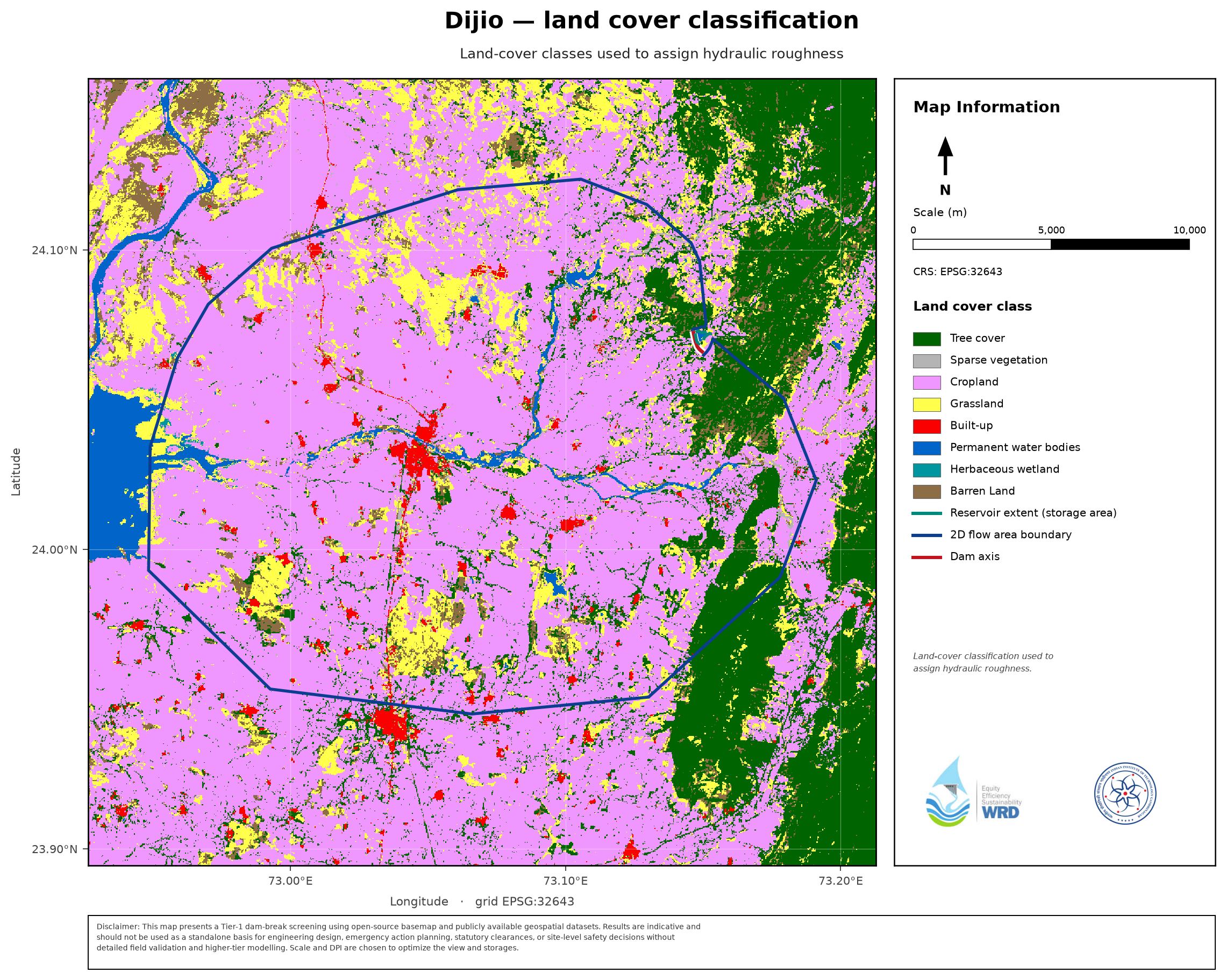

land-cover plate (Fig 3.2): _maps/Dijio__lulc.png
storage curve: _storage_curves/Dijio__storage_elevation.csv
inflow flood hydrograph: _infofiles/Dijio__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Dijio__inflow_baseflow_hydrograph.csv

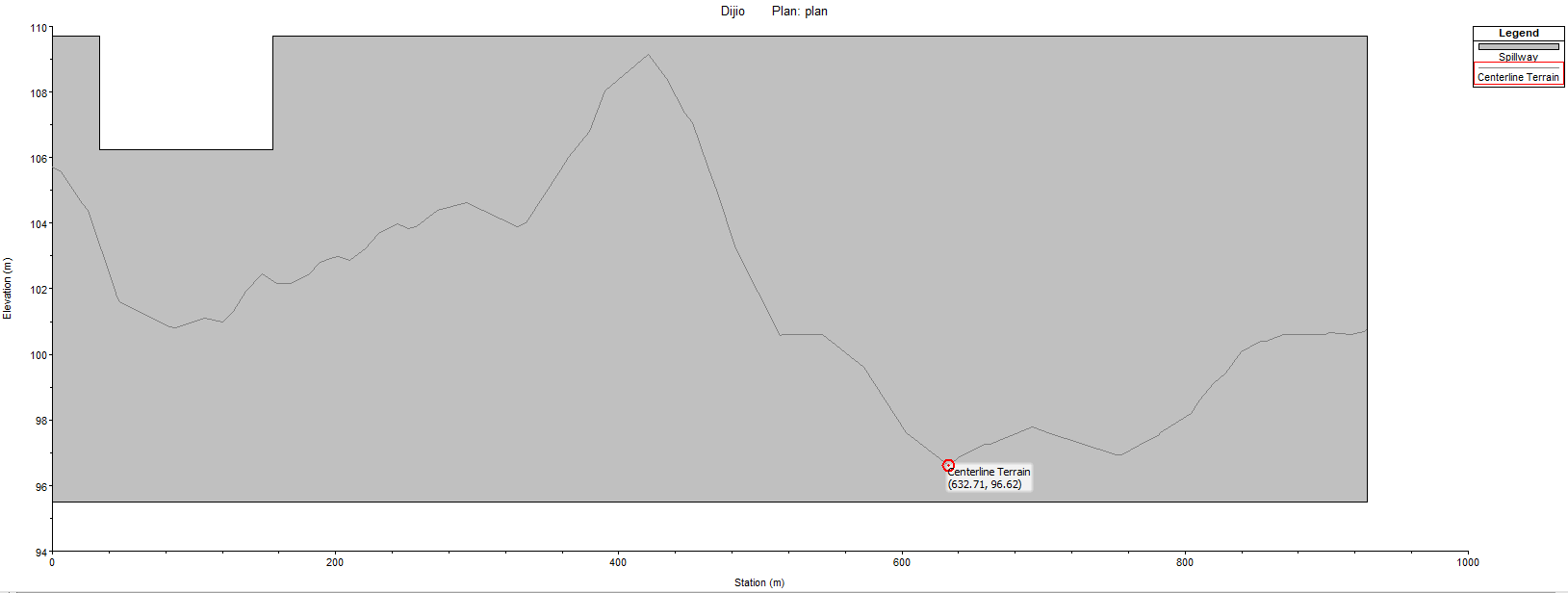

breach location (supplier): _infofiles/Dijio__breach_location.png

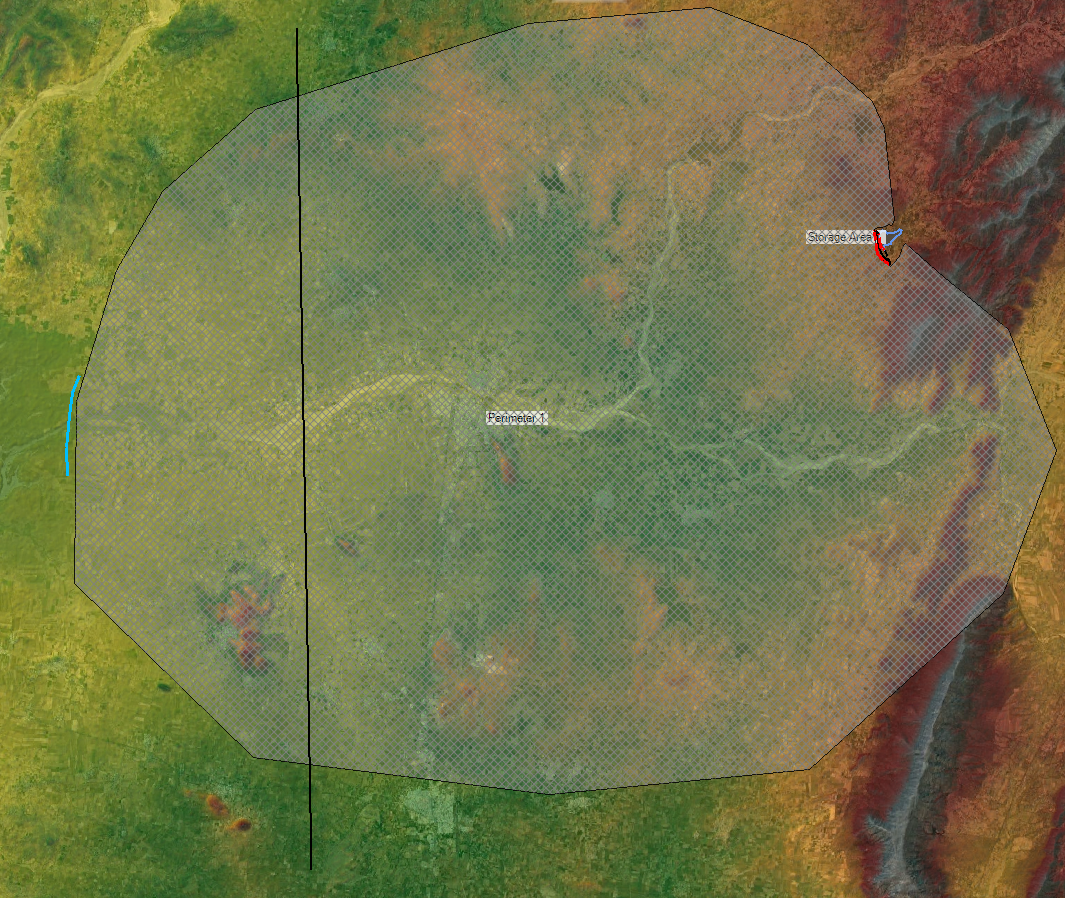

mesh: _infofiles/Dijio__mesh.png
infofile: _infofiles/Dijio__infofile.csv
DEM correction: _infofiles/Dijio__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Dijio
PAR / exposure: _par/Dijio
EAP figures (exposure curve + warning scatter, log y): _figures/Dijio
atlases: Dijio__S_EG_00_REF__S01-FW-REF, Dijio__S_EG_00__S02-FW-PIP, Dijio__S_EG_01__S03-DF-REF, Dijio__S_EG_03__S05-DF-PIP, Dijio__S_EG_05_SBL__S08-SO-L, Dijio__S_EG_05_SBR__S09-SO-H
