Dholi

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04HH0534 · CRS EPSG:32643

6current scenarios

6renderable

0running again

0retired · not in master

Report thread · updated 2026-09-05T05:26:33.683731+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (SEVEN_TAIL_DISCLOSURE_ACCEPTED_CANDIDATE_PENDING_DELIVERY; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

PIC GJ04HH0534: Codex-validated DBA, EAP and PCI set completed after the latest accepted runs; the governed three-dam export manifest records all report hashes.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04HH0534
District	Bharuch
Taluka	Jhagadiya
River	Madhumati River
Projected CRS	EPSG:32643 / UTM Zone 43N (WGS 84)
Dam type	Rolled filled Zone type
FRL (m)	136.0
HFL (m)	137.41
Top of dam (m)	141.0
Spillway crest (m)	136.0
Design spillway capacity (m³/s)	847.0
Gross storage (Mm³)	11.72
Catchment (km²)	34.32
Bed level, adopted (m)	112.0
Head, documented (m)	36.0
Head in DEM before correction (m)	29.0
Head after DEM correction (m)	29.0
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.01	9	5,387.22	5,205.73	47.50	34.85	`../Dholi/S_EG_00__S02-FW-PIP/`	`796376a388ff2a50`	2026-09-04T17:43
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.02	9	—	—	—	—	`../Dholi/S_EG_00_REF__S01-FW-REF/`	`f101e2ca9b00fa88`	2026-09-04T17:27
`S_EG_01`	`S03-DF-REF`	retained	clean	0.02	9	—	—	—	—	`../Dholi/S_EG_01__S03-DF-REF/`	`e5a62803674957e7`	2026-09-04T17:34
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.03	9	5,459.97	6,265.30	47.50	38.62	`../Dholi/S_EG_03__S05-DF-PIP/`	`70fc4a357f1bbf3e`	2026-09-04T17:50
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.27	9	3,203.49	—	1,541.00	60.00	`../Dholi/S_EG_05_SBL__S08-SO-L/`	`292ad60f5c830b53`	2026-09-26T23:09
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.19	9	795.61	—	1,741.00	60.00	`../Dholi/S_EG_05_SBR__S09-SO-H/`	`a0490ff209fd1659`	2026-09-26T23:09

Assets

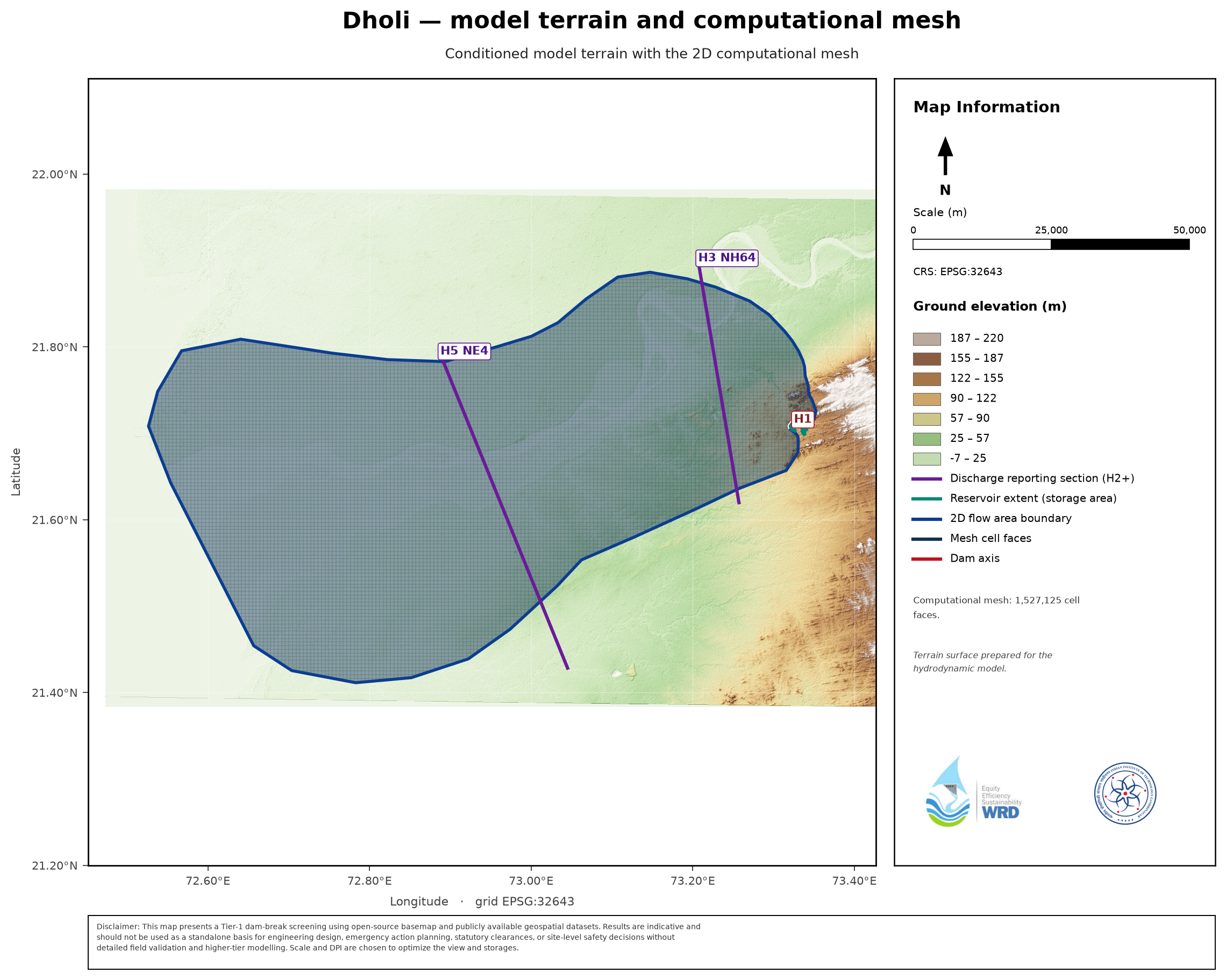

terrain plate (Fig 3.1): _maps/Dholi__dem.png

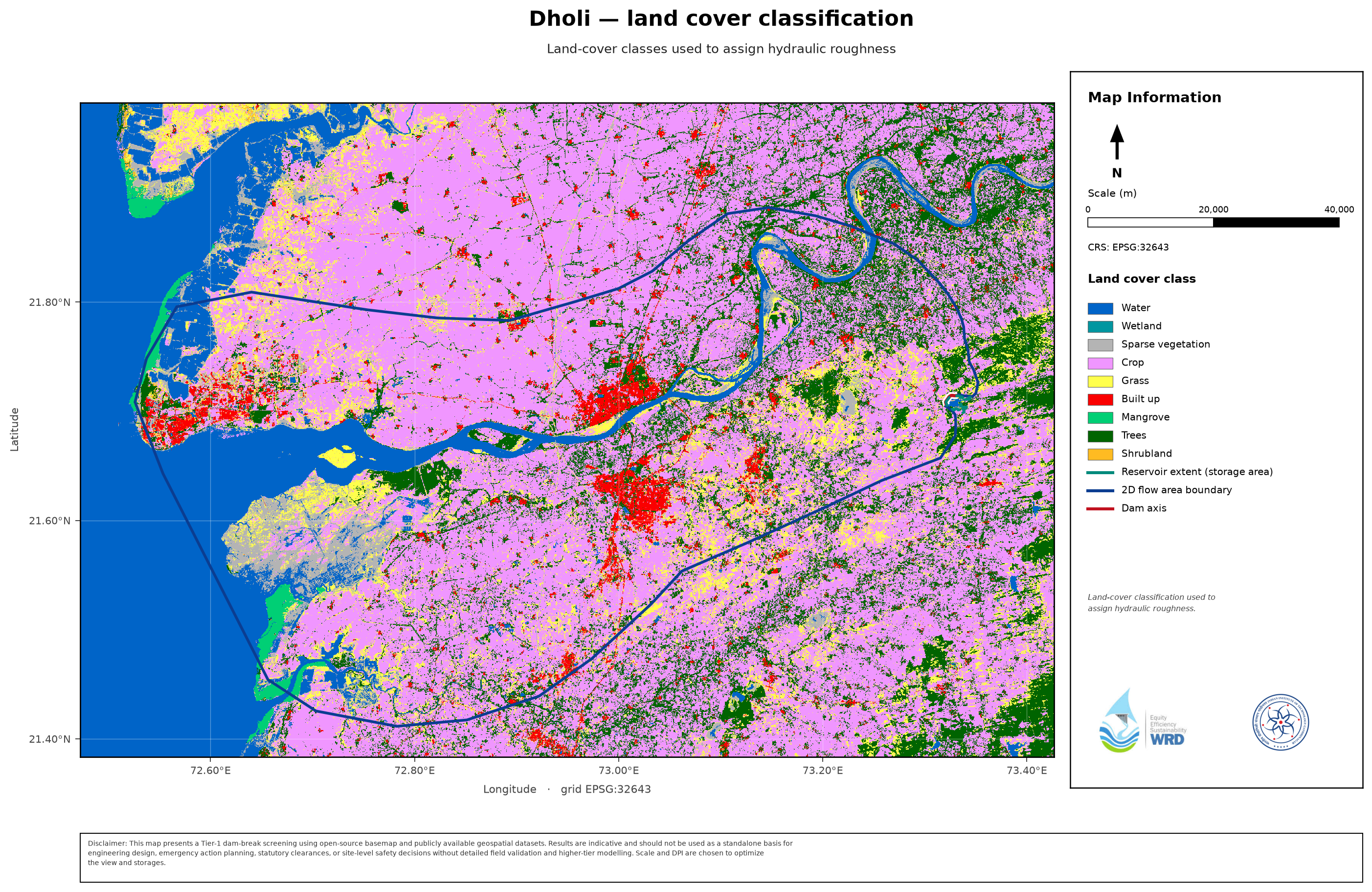

land-cover plate (Fig 3.2): _maps/Dholi__lulc.png
storage curve: _storage_curves/Dholi__storage_elevation.csv
inflow flood hydrograph: _infofiles/Dholi__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Dholi__inflow_baseflow_hydrograph.csv
breach location (supplier): _infofiles/Dholi__breach_location.png

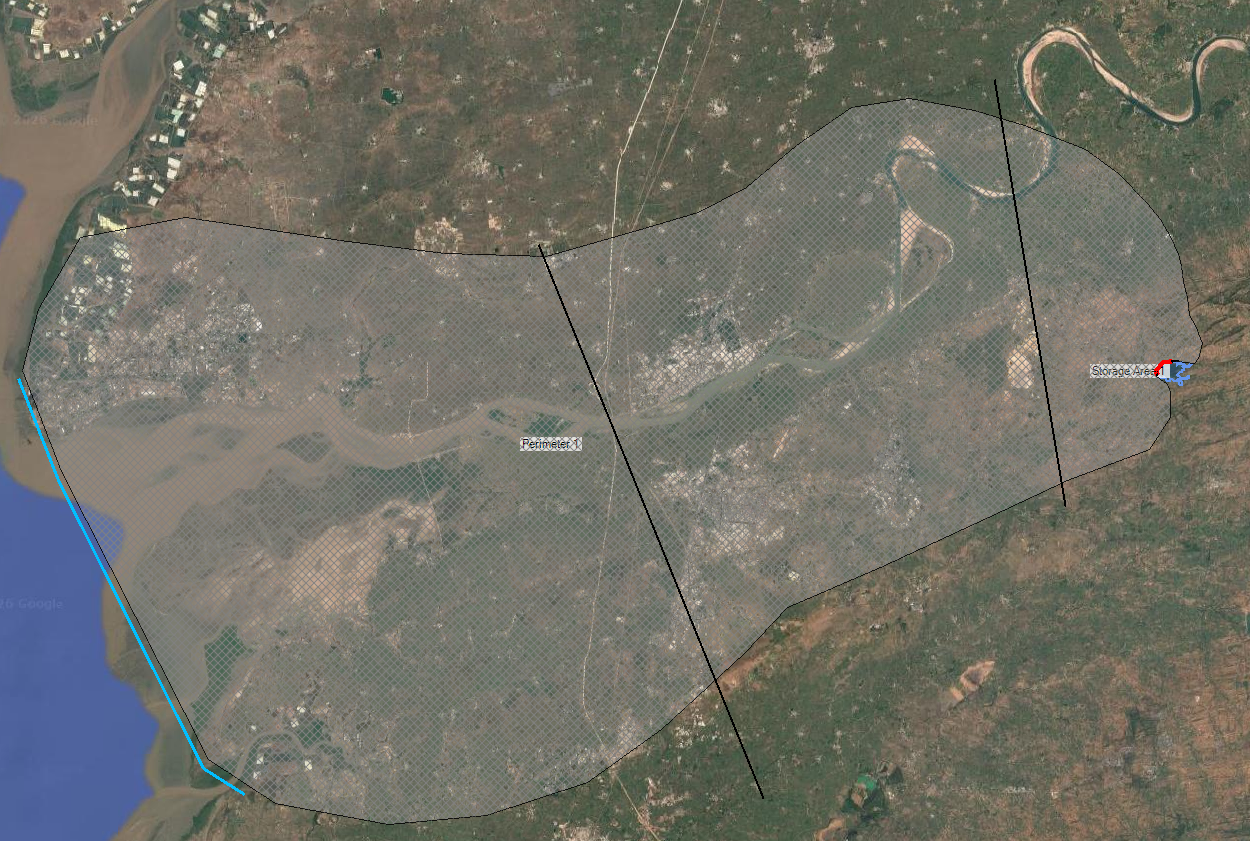

mesh: _infofiles/Dholi__mesh.png
infofile: _infofiles/Dholi__infofile.csv
DEM correction: _infofiles/Dholi__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Dholi
PAR / exposure: _par/Dholi
EAP figures (exposure curve + warning scatter, log y): _figures/Dholi
atlases: Dholi__S_EG_00_REF__S01-FW-REF, Dholi__S_EG_00__S02-FW-PIP, Dholi__S_EG_01__S03-DF-REF, Dholi__S_EG_03__S05-DF-PIP, Dholi__S_EG_05_SBL__S08-SO-L, Dholi__S_EG_05_SBR__S09-SO-H
