Dhatarwadi-II

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0759 · CRS EPSG:32642

9current scenarios

9renderable

0running again

1retired · not in master

Report thread · updated 2026-08-17T05:11:34+00:00
report: current — V2.1 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Rebuilt 17 Aug with the spillway wording and units correction; audit clean.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0759
District	Amreli
Taluka	Rajula
River	Dhatarwadi
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Earthen dam with gated ogee spillway
FRL (m)	34.41
HFL (m)	34.41
Top of dam (m)	38.5
Spillway crest (m)	30.76
Design spillway capacity (m³/s)	8370.0
Gross storage (Mm³)	11.258
Catchment (km²)	764.0
Bed level, adopted (m)	26.25
Head, documented (m)	12.25
Head in DEM before correction (m)	5.05
Head after DEM correction (m)	12.25
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.24	9	677.01	2,967.26	1,061.50	53.25	`../Dhatarwadi-II/S_EG_00__S02-FW-PIP/`	`20dd9fb96d58ca6a`	2026-10-02T04:50
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	9	—	—	—	—	`../Dhatarwadi-II/S_EG_00_REF__S01-FW-REF/`	`812f7ef816b61620`	2026-10-02T11:55
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	9	—	—	—	—	`../Dhatarwadi-II/S_EG_01__S03-DF-REF/`	`8a52b31ab9dc9b33`	2026-08-29T12:18
`S_EG_02`	`S04-DF-OT`	retained	clean	0.05	9	2,808.55	6,192.92	1,061.50	93.05	`../Dhatarwadi-II/S_EG_02__S04-DF-OT/`	`ceb94f3c3f3a3b8f`	2026-08-29T12:26
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.01	9	3,749.27	2,672.19	198.43	79.16	`../Dhatarwadi-II/S_EG_05_SBL__S08-SO-L/`	`3adf08dfe98b1e23`	2026-08-29T12:41
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.01	9	3,110.51	2,672.19	766.55	79.16	`../Dhatarwadi-II/S_EG_05_SBR__S09-SO-H/`	`173930c0a85a73e2`	2026-08-29T12:49
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.03	9	—	—	—	—	`../Dhatarwadi-II/S_EG_06__S06-DF-OPS/`	`ee614e1891f510d0`	2026-08-29T12:33
`S_EG_08_GFL`	`S11-GF-L`	retained	clean	0.01	9	—	—	—	—	`../Dhatarwadi-II/S_EG_08_GFL__S11-GF-L/`	`3fd2c2976b4b803f`	2026-08-29T12:57
`S_EG_08_GFR`	`S12-GF-R`	retained	clean	0.02	9	—	—	—	—	`../Dhatarwadi-II/S_EG_08_GFR__S12-GF-R/`	`bcc656cb0979c0bc`	2026-08-29T13:01

Assets

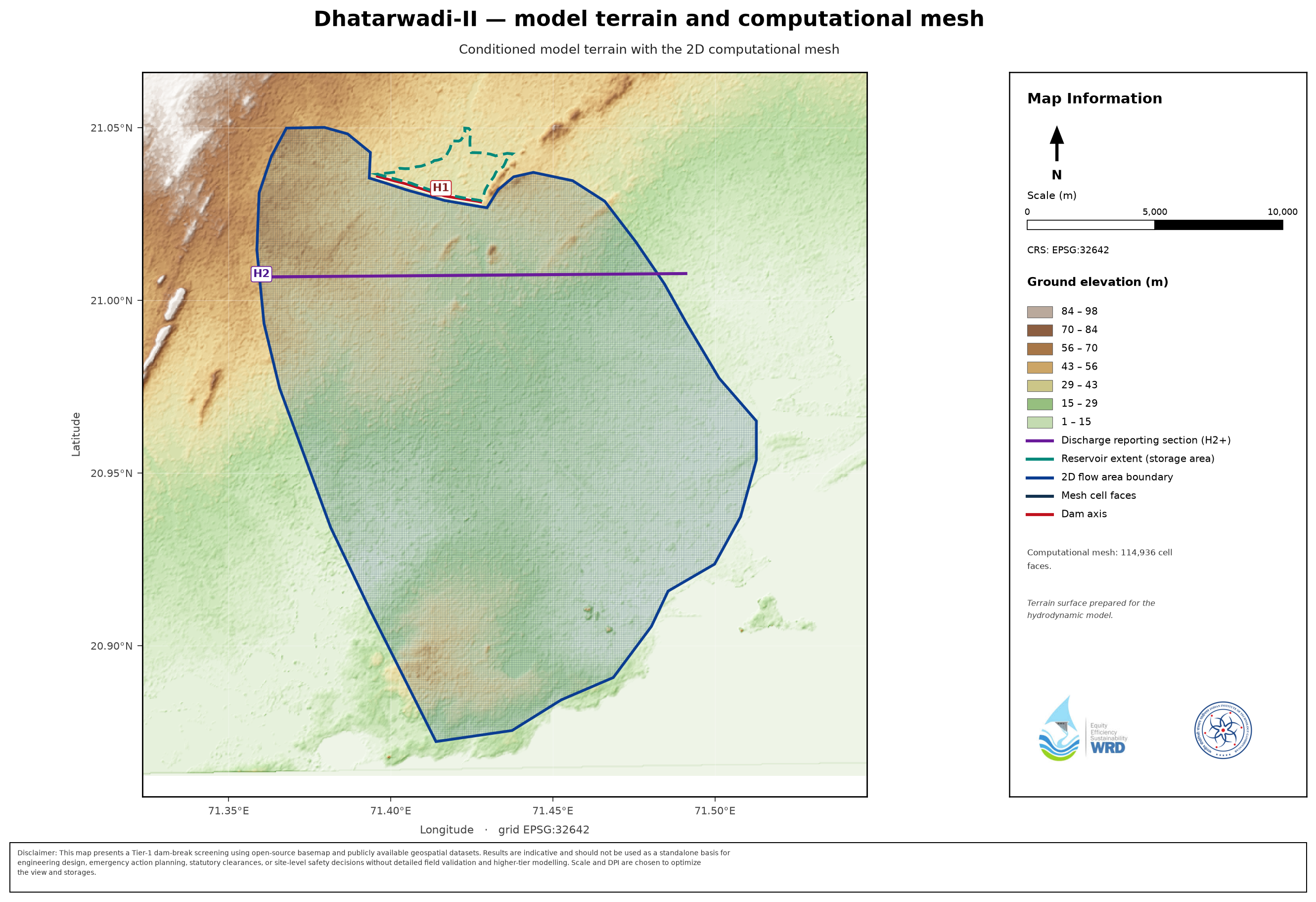

terrain plate (Fig 3.1): _maps/Dhatarwadi-II__dem.png

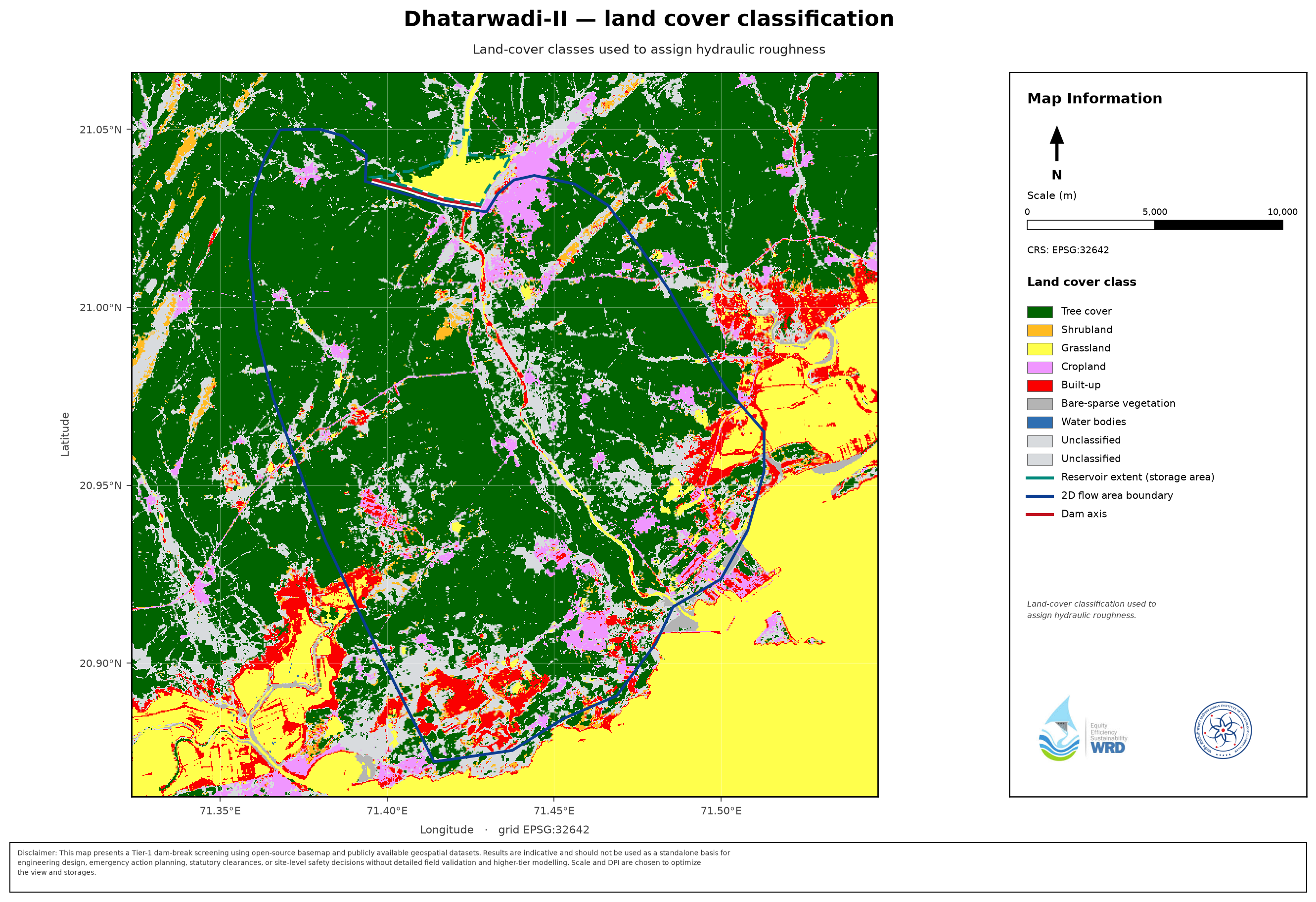

land-cover plate (Fig 3.2): _maps/Dhatarwadi-II__lulc.png
storage curve: _storage_curves/Dhatarwadi-II__storage_elevation.csv
inflow flood hydrograph: _infofiles/Dhatarwadi-II__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Dhatarwadi-II__inflow_baseflow_hydrograph.csv
breach location (supplier): _infofiles/Dhatarwadi-II__breach_location.png

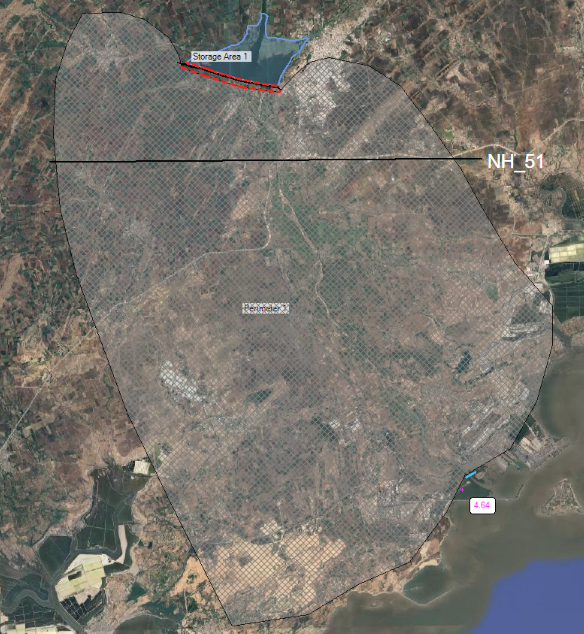

mesh: _infofiles/Dhatarwadi-II__mesh.png
infofile: _infofiles/Dhatarwadi-II__infofile.csv
DEM correction: _infofiles/Dhatarwadi-II__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Dhatarwadi-II
PAR / exposure: _par/Dhatarwadi-II
EAP figures (exposure curve + warning scatter, log y): _figures/Dhatarwadi-II
atlases: Dhatarwadi-II__S_EG_00_REF__S01-FW-REF, Dhatarwadi-II__S_EG_00__S02-FW-PIP, Dhatarwadi-II__S_EG_01__S03-DF-REF, Dhatarwadi-II__S_EG_02__S04-DF-OT, Dhatarwadi-II__S_EG_05_SBL__S08-SO-L, Dhatarwadi-II__S_EG_05_SBR__S09-SO-H, Dhatarwadi-II__S_EG_06__S06-DF-OPS, Dhatarwadi-II__S_EG_08_GFL__S11-GF-L, Dhatarwadi-II__S_EG_08_GFR__S12-GF-R

Retired — not in the master

These artefacts are identified by sha so a stale copy elsewhere can be recognised; they do not exist in the master.

run id	state	sha256
`S_EG_05`	SUPERSEDED
