Baldeva

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04MH0327 · CRS EPSG:32643

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2.1 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04MH0327
District	Bharuch
Taluka	Netrang
River	A Tributary of Kim River(Tokari
Projected CRS	EPSG:32643 / UTM Zone 43N (WGS 84)
Dam type	Rolled filled Zone type
FRL (m)	141.5
HFL (m)	143.2
Top of dam (m)	146.7
Spillway crest (m)	141.5
Design spillway capacity (m³/s)	698.0
Gross storage (Mm³)	7.193
Catchment (km²)	29.56
Bed level, adopted (m)	129.0
Head, documented (m)	17.7
Head in DEM before correction (m)	14.455
Head after DEM correction (m)	17.7
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.10	9	1,670.72	2,096.52	970.58	33.78	`../Baldeva/S_EG_00__S02-FW-PIP/`	`334eec6c4728d55d`	2026-10-10T02:35
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	9	—	—	—	—	`../Baldeva/S_EG_00_REF__S01-FW-REF/`	`c4149bb29bc2e398`	2026-10-10T02:33
`S_EG_01`	`S03-DF-REF`	retained	clean	0.03	9	—	—	—	—	`../Baldeva/S_EG_01__S03-DF-REF/`	`d198e9f36207047b`	2026-10-10T02:34
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.12	9	2,348.63	2,755.86	970.58	38.06	`../Baldeva/S_EG_03__S05-DF-PIP/`	`fafef024c22c37ae`	2026-10-10T02:36
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.19	9	1,955.90	—	326.80	60.00	`../Baldeva/S_EG_05_SBL__S08-SO-L/`	`4f68c9dd0eaa8cd3`	2026-10-10T03:01
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.41	9	1,955.90	—	464.80	60.00	`../Baldeva/S_EG_05_SBR__S09-SO-H/`	`752f64a0e12a0639`	2026-10-10T03:01

Assets

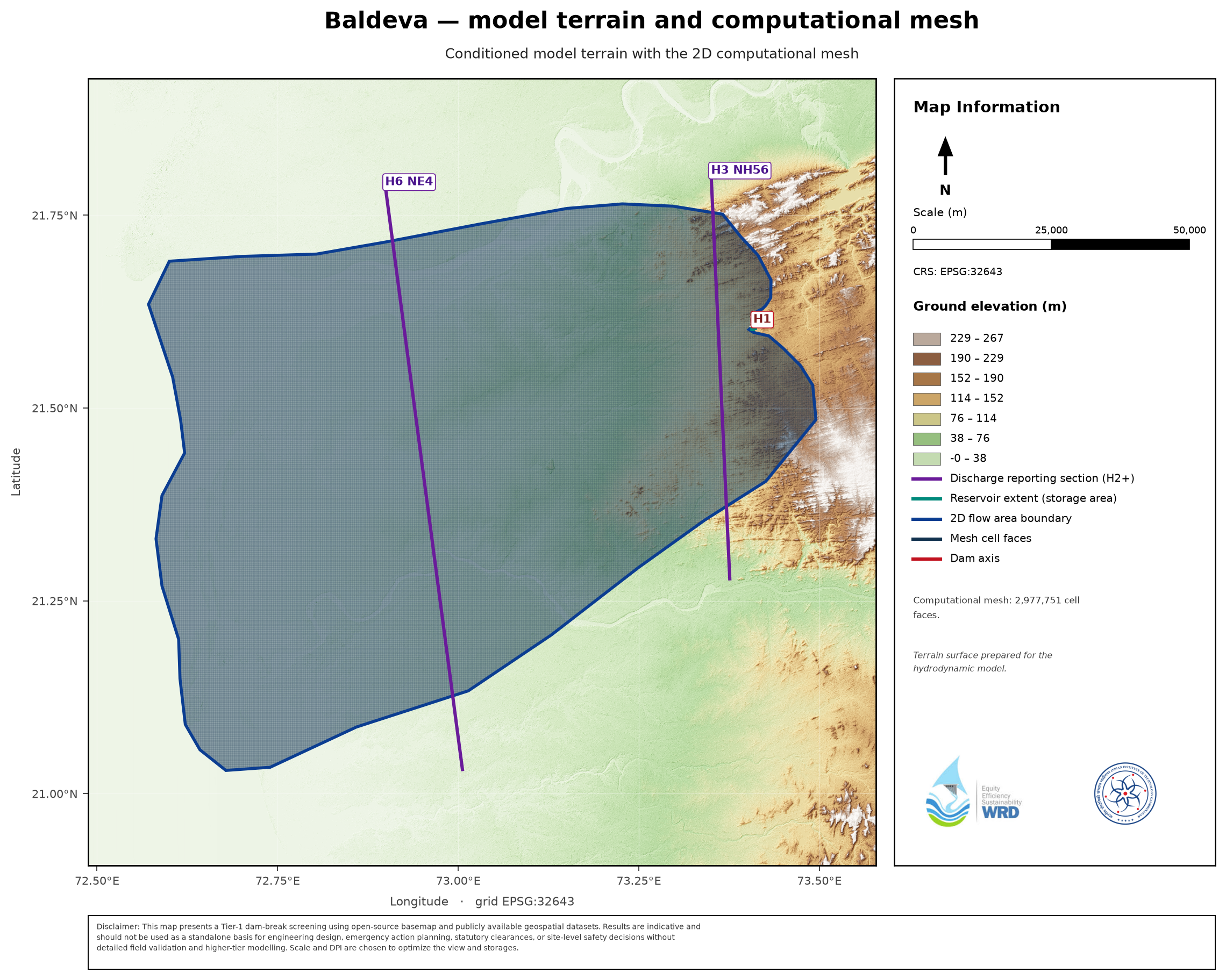

terrain plate (Fig 3.1): _maps/Baldeva__dem.png

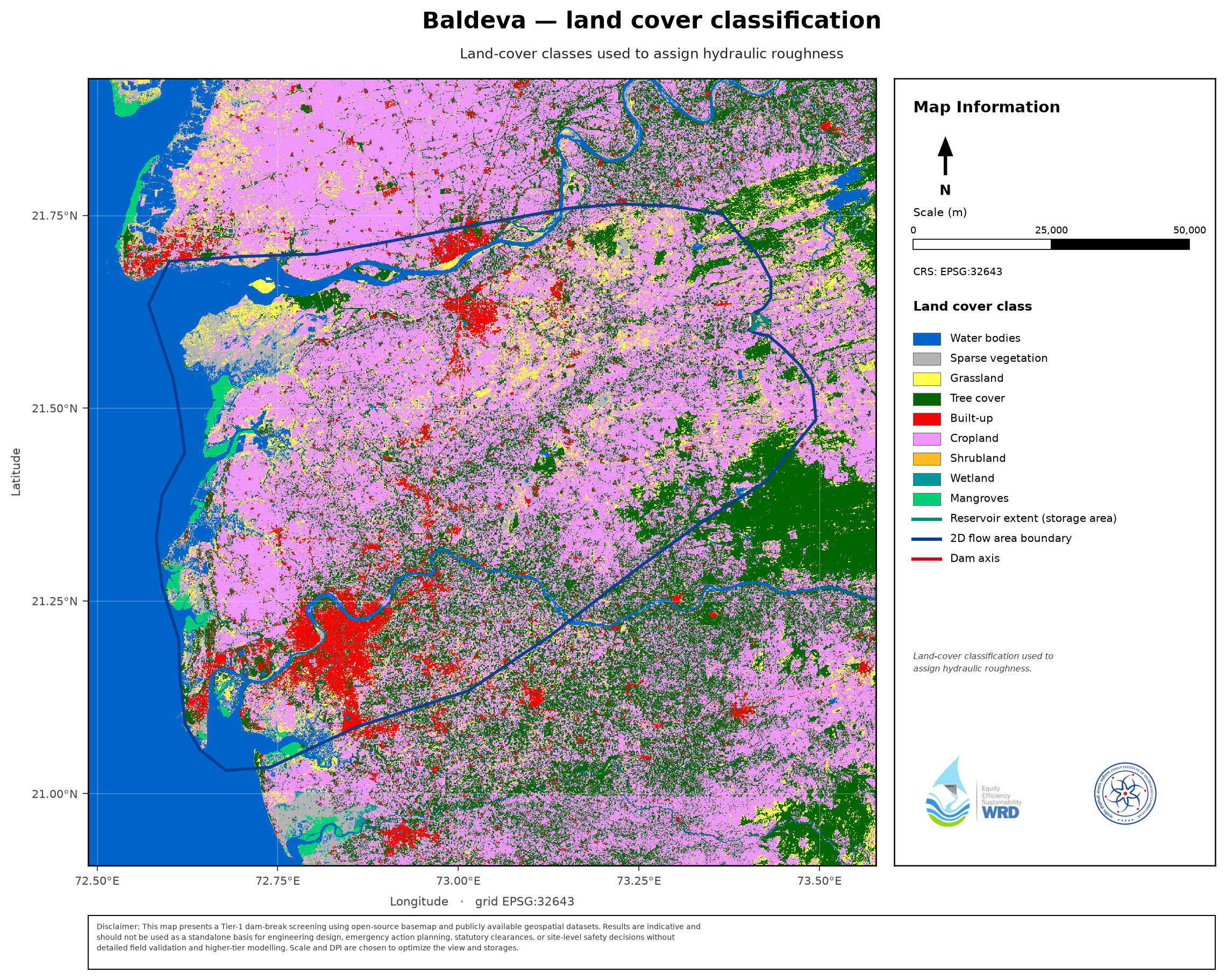

land-cover plate (Fig 3.2): _maps/Baldeva__lulc.png
storage curve: _storage_curves/Baldeva__storage_elevation.csv
inflow flood hydrograph: _infofiles/Baldeva__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Baldeva__inflow_baseflow_hydrograph.csv

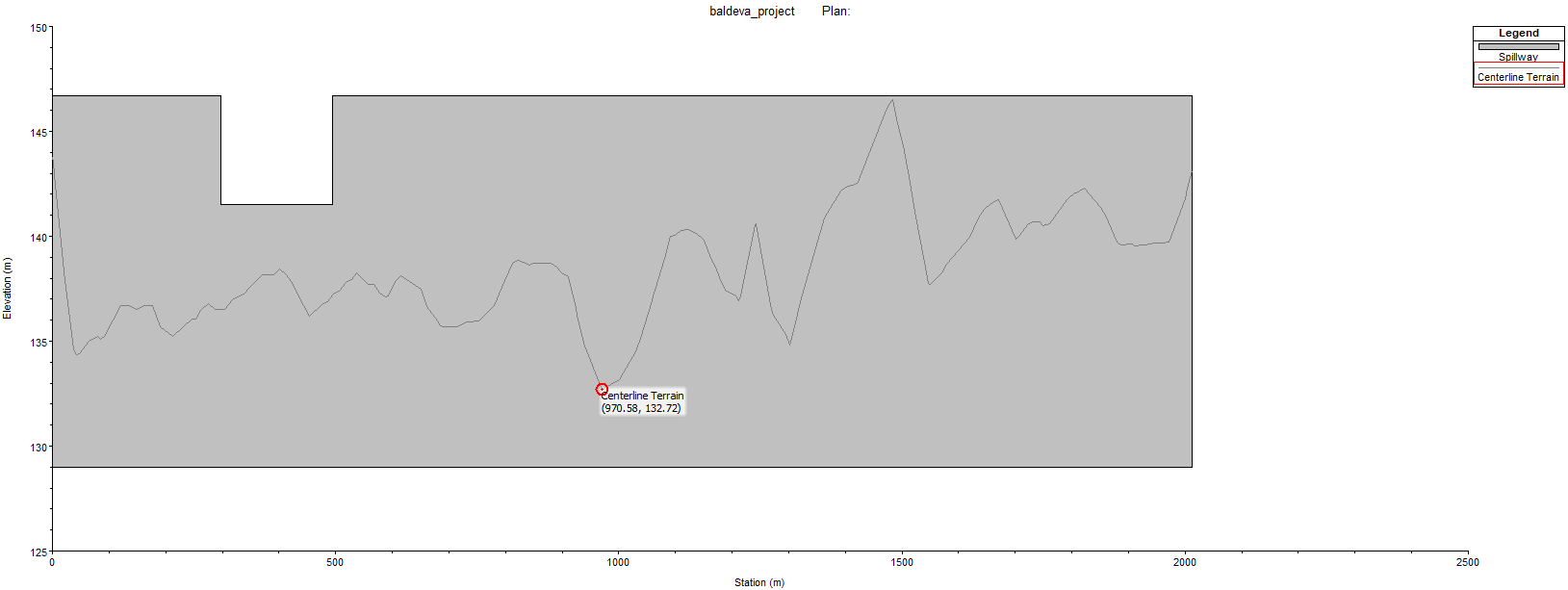

breach location (supplier): _infofiles/Baldeva__breach_location.png

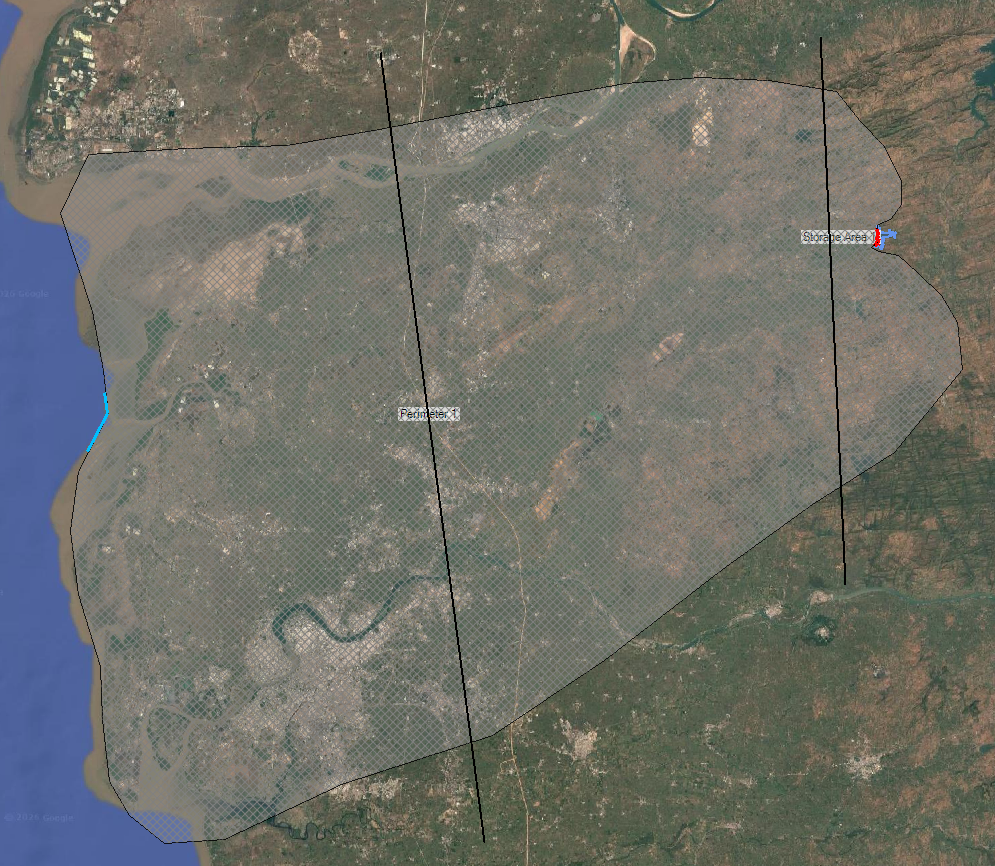

mesh: _infofiles/Baldeva__mesh.png
infofile: _infofiles/Baldeva__infofile.csv
DEM correction: _infofiles/Baldeva__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Baldeva
PAR / exposure: _par/Baldeva
EAP figures (exposure curve + warning scatter, log y): _figures/Baldeva
atlases: Baldeva__S_EG_00_REF__S01-FW-REF, Baldeva__S_EG_00__S02-FW-PIP, Baldeva__S_EG_01__S03-DF-REF, Baldeva__S_EG_03__S05-DF-PIP, Baldeva__S_EG_05_SBL__S08-SO-L, Baldeva__S_EG_05_SBR__S09-SO-H
